REED RELAYS FOR THERMOCOUPLE SWITCHING

In data acquisition applications where thermocouples or similar, very low-level signals need to be switched, the thermal EMFs generated across the switch path can result in unacceptable errors.  Pickering’s Series 100 and 101 reed relays are designed for improved thermal EMFs performance across the switch path when compared to general purpose reed relays or other switching technologies.

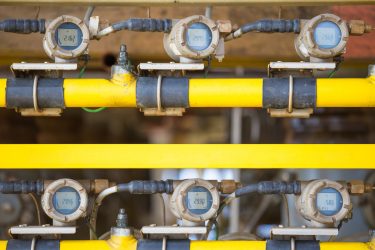

Temperature,Gauge,Transmitter,At,Oil,And,Gas,Remote,Wellhead,Platform

Thermal EMFs are dependent on the temperature gradient across the switch, the high coil resistances up to 3300 Ohms for a 5 Volt relay reduces the coil heating effect and the larger mass of the device dissipates this heat helping to minimize the thermal gradient across the switch. The most efficient way is to use a 2-pole relay with one switch connected to one end of the thermocouple and the second switch connected to the other end, with the switches connected differentially, the thermal EMF across one switch will be in the opposite polarity as the voltage in the second switch so having a cancelling effect. With this set up, a 2 pole Series 100 or Series 101 can introduce less than 1 microvolt across the relay ensuring accurate measurements.

The Series 100 and Series 101 offer 1 Form A, 2 Form A, 1 Form B and 1 Form C configurations, all featuring magnetic screening to allow for side by side stacking and instrumentation grade reed switches to ensure long life. The low coil power consumption also makes these reed relays ideal for portable equipment.

Recommended Reed Relays for Thermocouple Switching

Series 100 – Low Thermal EMF

Thermal EMF about 1 Microvolt or Less. 1 Form A, 2 Form A, 1 Form B & 1 Form C configurations. 3, 5, 12 or 24 V coils. Low power consumption, ideal for portable equipment.

The Pickering Series 100 is a complete range of Single-in- Line (SIL) reed relays primarily intended for direct drive from 4000B CMOS or NMOS logic or similar low current sources. They are also useful for applications where conservation of current is important, for example, battery powered equipment.

Learn More

Request Free
Evaluation Samples

More Info

Series 101 – Direct Drive from CMOS

Direct drive from 74HC or HCT. Stacking on 0.3 inches pitch. 1 Form A, 2 Form A, 1 Form B & 1 Form C configurations. 3, 5, 12 or 24 V coils. Encapsulated in a plastic package with internal mu-metal magnetic screen.

The Series 101 have very high coil resistances. 5 Volt dry versions may be driven directly from 74HC or 74HCT logic without the need for additional drivers. 74HC logic will drive up to 4mA at 5 Volts, therefore a coil resistance of 1600 ohms is desirable to avoid running the IC at its maximum rating; 1600 ohms is the coil resistance of the single pole dry Series 101.

Learn More

Request Free
Evaluation Samples

More Info

Shop Reed Relays for Thermocouple Switching

The below table will help you narrow down our offering to get you the correct reed relay for your application.

Once you narrow your selections down you can download a reed relay data sheet for more information or request a quote to find out prices and lead times.

Apply
Reset
PEL Series
3
PEL Contact Configuration
Coil Voltage
Switching Current
(Amps)
Switching Power
(Watts)
PEL Diode
Switching Voltage
(DC/AC peak)
to GO
Stand-off Voltage
(DC/AC peak)
to GO
Width (mm)
to GO
Depth (mm)
to GO
Height (mm)
to GO
Category
Apply
Reset
If you experience any technical difficulties whilst loading this page, please clear your browser cache and reload. Still having trouble? Contact us here
If you experience any technical difficulties whilst loading this page, please clear your browser cache and reload. Still having trouble? Contact us here
Scroll right to view full data information
Showing 1 – 7 of 128 results Showing all 128 results Showing the single result No results found
7 per page
Clear filters
PEL Series : Series 100
PEL Series : Series 101
PEL Series:
Clear filters
Filters Sort results
Reset Apply
Part Number
Contact Configuration
Switching Current (Amps)
Switching Power (Watts)
Switching Voltage (DC or AC peak)
Stand-off Voltage (DC or AC peak)
Coil Voltage
Coil Resistance (Ω)
Switch Type
Diode
Depth (mm)
Width (mm)
Height (mm)
View Datasheet
Stock
Price
Add to Bag
1 Form A - SPST N.O.
0.5
Amps
10
400
1500
12V
6000 Ω
High Voltage Reed
No
7.4
20.1
9.4
0 - MTO
$13.81
2 Form A - DPST N.O.
1
Amps
20
200
240
24V
6000 Ω
General Dry Reed
No
7.4
20.1
12.5
0 - MTO
$13.45
1 Form A - SPST N.O.
2
Amps
50
500
550
12V
1000 Ω
Position Insensitive Hg
Yes
7.4
20.1
9.4
0 - MTO
$63.74
2 Form A - DPST N.O.
2
Amps
50
500
550
12V
650 Ω
Std Mercury Reed
Yes
7.4
20.1
12.5
5
$118.40
Max: 5
Min: 1
Step: 1
Add
1 Form A - SPST N.O.
0.5
Amps
10
200
240
5V
1600 Ω
Low Level Dry Reed
No
7.4
20.1
9.4
16
$9.05
Max: 16
Min: 1
Step: 1
Add
1 Form B - SPST N.C.
1
Amps
15
200
240
5V
3000 Ω
General Dry Reed
No
7.4
20.1
9.4
0 - MTO
$12.46
1 Form A - SPST N.O.
0.5
Amps
10
400
1500
24V
6000 Ω
High Voltage Reed
Yes
7.4
20.1
9.4
0 - MTO
$14.21
