HIGH VOLTAGE 15KV REED RELAY

HIGH VOLTAGE SIL / CHASSIS MOUNT PUSH ON TERMINALS

High Voltage Dry Reed Relays For up to 15 kV

• SoftCenter™ construction
• Up to 15 kV stand-off
• 12.5 kV switching
• Small size
• Easy mounting
• Long life
• Fully encapsulated
• Many benefits compared to industry standard relays, for more info click here >

Download Data Sheet PDF

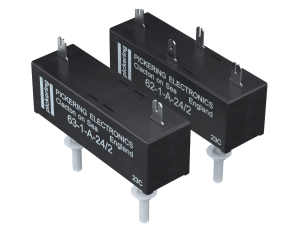

Series 62 Chassis mounting with push-on connections on the top face

Series 63 Printed circuit mounting with push-on high voltage connections on the top face

The Series 62 and 63 ranges of high voltage reed relays feature push-on terminals and are supplied complete with the appropriate connectors and insulating boots.

They are available for up to 15kV stand-off, 12.5kV switching at 50 Watts maximum. Tungsten plated contacts ensure a long and reliable life.

Both Form A (energize to make) and Form B (energize to break) configurations are available and it is usually possible to achieve a Form C (change-over) function by using a Form A and a Form B
type together.

These relays feature an internal mu-metal magnetic screen which permits the Form A (energize to make) versions to be mounted side by side. Special versions can be manufactured with an electrostatic screen and/or earth connection to the magnetic screen. This can often be useful where EMC problems are encountered, please contact our technical sales office.

Form B types are magnetically biased and should not be mounted directly onto ferrous metal chassis or less than 1 inch (25mm) away from other relays as the coil operating voltage characteristics will be altered due to magnetic interaction. The coils of Form B relays are polarity sensitive, the positive connection is identified by a red spot.

5, 12, and 24 volt coils are available as standard other voltages can be supplied to special order.

These relays can stand-off 15kV, switching at up to 50W.

Series 62 & 63 reed relays are suitable for many applications including high-end cable testers, backplane testers, big physics and high voltage instrumentation.

Download the Series 62 & 63 Datasheet

All our data sheets have been recently updated to include additional environmental specifications, mechanical characteristics and relay weights, RF plots for coaxial relays (showing VSWR, isolation and insertion loss), interactive links to further useful information, comparison tables to similar relay ranges and much more.

Download the Series 62 & 63 3D Models

The download is a zip file containing 3D models in STEP, IGS and SLDPRT formats (free viewers are available for these formats).

  • Free Sample Service - determining which components to design in can be challenging. Fortunately, here at Pickering Electronics, we provide free working samples to help you evaluate our high-quality Reed Relays.
  • Reed Relay Selector Tool - this tool will help you narrow down our large offering to get you the correct reed relay for your application. Once you narrow your selections down you can download a relay datasheet for more information, purchase in stock items or request a quote to find out lead times of made to order (MTO) relays.
  • Concise Tech Guide - this guide will help you to maximise the reliability of your design.
  • Quality Assurance - learn more about the various accreditations and certifications that Pickering holds.
  • Custom Designed Reed Relays - With over a thousand catalog parts there is plenty of choice when choosing the right Reed Relay for your product, but if you cannot find one suitable for your needs Pickering can customize our standard reed relay parts to suit your specific requirements and applications.
All Pickering reed relays feature the highest quality instrumentation grade reed switches making them suitable for the most demanding applications. Internal mu-metal magnetic screens (optional on Series 103) allow very high packing density. Diodes are optional.

The below table will help you narrow down our offering to get you the correct reed relay for your application.

Apply
Reset
PEL Contact Configuration
Coil Voltage
Switching Current
(Amps)
Switching Power
(Watts)
PEL Diode
Switching Voltage
(DC/AC peak)
to GO
Stand-off Voltage
(DC/AC peak)
to GO
Width (mm)
to GO
Depth (mm)
to GO
Height (mm)
to GO
Category
Apply
Reset
If you experience any technical difficulties whilst loading this page, please clear your browser cache and reload. Still having trouble? Contact us here
If you experience any technical difficulties whilst loading this page, please clear your browser cache and reload. Still having trouble? Contact us here
Scroll right to view full data information
Showing 1 – 10 of 27 results Showing all 27 results Showing the single result No results found
10 per page
Filters Sort results
Reset Apply
Part Number
Contact Configuration
Switching Current (Amps)
Switching Power (Watts)
Switching Voltage (DC or AC peak)
Stand-off Voltage (DC or AC peak)
Coil Voltage
Coil Resistance (Ω)
Switch Type
Diode
Depth (mm)
Width (mm)
Height (mm)
View Datasheet
Stock
Price
Add to Bag
1 Form A - SPST N.O.
3
Amps
50
12500
15000
12V
75 Ω
15KV Standoff
No
19.05
63.5
21.3
0 - MTO
$113.48
1 Form A - SPST N.O.
3
Amps
50
12500
15000
24V
350 Ω
15KV Standoff
No
19.05
63.5
21.3
0 - MTO
$114.00
1 Form B - SPST N.C.
3
Amps
50
3500
5000
5V
50 Ω
5KV Standoff
No
19.05
63.5
21.3
0 - MTO
$76.85
1 Form B - SPST N.C.
3
Amps
50
3500
5000
12V
150 Ω
5KV Standoff
No
19.05
63.5
21.3
6
$76.99
Max: 6
Min: 1
Step: 1
Add
1 Form A - SPST N.O.
3
Amps
50
3500
5000
5V
50 Ω
5KV Standoff
No
19.05
63.5
21.3
0 - MTO
$70.28
1 Form B - SPST N.C.
3
Amps
50
3500
5000
24V
500 Ω
5KV Standoff
No
19.05
63.5
21.3
0 - MTO
$77.48
1 Form A - SPST N.O.
3
Amps
50
3500
5000
12V
150 Ω
5KV Standoff
No
19.05
63.5
21.3
7
$70.39
Max: 7
Min: 1
Step: 1
Add
1 Form B - SPST N.C.
3
Amps
50
7500
10000
5V
50 Ω
10KV Standoff
No
19.05
63.5
21.3
0 - MTO
$77.69
1 Form A - SPST N.O.
3
Amps
50
3500
5000
24V
500 Ω
5KV Standoff
No
19.05
63.5
21.3
0 - MTO
$70.90
1 Form B - SPST N.C.
3
Amps
50
7500
10000
12V
150 Ω
10KV Standoff
No
19.05
63.5
21.3
5
$77.79
Max: 5
Min: 1
Step: 1
Add
1 2 3
