REED RELAYS FOR HIGH POWER

Miniature, ultra-high packing density reed relays usually have a switching rating of up to 10 Watts and 0.5 amps, but some applications can require higher switching power and higher carry current specifications.

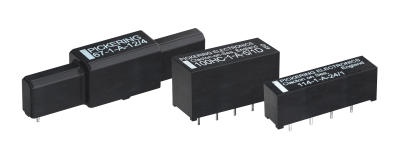

The Series 100HC and Series 114 offer 1 amp switching up to 40 Watts and 3 amps continuous carry current, and the Series 67 offers 3 amp switching up to 200W and 5 amps continuous carry current. Having the advantages of hermetically sealed contacts, fast operating speeds and very low leakage currents, these can offer an ideal solution over other switching technologies. In cold switching applications where current pulses are applied, up to 5 times the continuous carry current specification is achievable depending on the duty cycle.

high power

Recommended Reed Relays for High Power

Series 144 – 80W High Power

2 A switching at up to 60 W, or 1 A switching up to 80 W, with a continuous carry current of up to 3 Amps. High-voltage capability, with a switching voltage of 1000VDC up to 10W and up to 3kV standoff. 1 or 2 Form A (energize to make) or 1 Form B (energize to break) configurations. 5 , 12 or 24 V coils.

Learn More

Request Free
Evaluation Samples

More Info

Series 100HC – 3A Carry Current + High Coil Resistance

1 A switching at up to 40 W. High coil resistance of up to 6000 Ω for low power consumption. Form A (energise to make) or Form B (energise to break) configurations. 5 , 12 or 24 V coils.

The Pickering Series 100HC offers higher coil resistance than the similar specification Series 114, the greater winding space allowing for the use of switches rated to 3 Amps continuous carry current and even higher levels in pulsed current applications.

Learn More

Request Free
Evaluation Samples

More Info

Series 114 – 40W High Power

1 A switching at up to 40 W, carrying 3 A. Form A (energize to make) or Form B (energize to break) configurations. 3, 5, 12 or 24 V coils. Suitable for high power applications and in many cases, may be used as an alternative to mercury wetted reed relays.

The Series 114 is a range of Single-In-Line reed relays intended for power levels that are beyond the capabilities of conventional dry SIL reed relays. The range features an internal mu-metal screen to minimize problems that would otherwise be experienced due to magnetic interaction when they are closely stacked.

Learn More

Request Free
Evaluation Samples

More Info

Series 67 – 3A Switching at up to 200W

The highest power switch in the Pickering portfolio – Up to 200 W. 5, 12, and 24 V coils with optional internal diode. 1 Form A and 1 Form C configurations. Suitable for high voltage, electro solar and cable testing.

With a stand-off voltage of up to 8 kV, and capable of 6kV switching at 200W, Series 67 relays are constructed using a lead frame in a Single-in-Line (SIP) format and feature former-less coils which results in a smaller package than is usual for this type of device.

Learn More

Request Free
Evaluation Samples



More Info

Shop Reed Relays for High Power

The below table will help you narrow down our offering to get you the correct reed relay for your application.

Once you narrow your selections down you can download a reed relay data sheet for more information or request a quote to find out prices and lead times.

PEL Series
4
PEL Contact Configuration
Coil Voltage
Switching Current
(Amps)
Switching Power
(Watts)
PEL Diode
Switching Voltage
(DC/AC peak)
to GO
Stand-off Voltage
(DC/AC peak)
to GO
Width (mm)
to GO
Depth (mm)
to GO
Height (mm)
to GO
Category
If you experience any technical difficulties whilst loading this page, please clear your browser cache and reload. Still having trouble? Contact us here
If you experience any technical difficulties whilst loading this page, please clear your browser cache and reload. Still having trouble? Contact us here
Scroll right to view full data information
Showing 1 – 7 of 86 results Showing all 86 results Showing the single result No results found
7 per page
Clear filters
PEL Series : Series 100HC
PEL Series : Series 144
PEL Series : Series 114
PEL Series : Series 67
Clear filters
Filters Sort results
Reset Apply
Part Number
Pickering Compare
Contact Configuration
Switching Current (Amps)
Switching Power (Watts)
Switching Voltage (DC or AC peak)
Stand-off Voltage (DC or AC peak)
Coil Voltage
Coil Resistance (Ω)
Switch Type
Diode
Depth (mm)
Width (mm)
Height (mm)
View Datasheet
Stock
Price
Add to Bag
1 Form A - SPST N.O.
2
Amps
80*
1000
2000
12V
750 Ω
General Purpose
No
6.22
24.1
8.1
0 - MTO
$13.27
1 Form A - SPST N.O.
2
Amps
80*
1000
2000
5V
200 Ω
General Purpose
Yes
6.22
24.1
8.1
43
$13.69
Max: 43
Min: 1
Step: 1
Add
2 Form A - SPST N.O.
2
Amps
80*
1000
2000
24V
1000 Ω
General Purpose
Yes
6.22
29
12.5
10
$19.16
Max: 10
Min: 1
Step: 1
Add
1 Form A - SPST N.O.
2
Amps
80*
1000
2000
24V
2000 Ω
General Purpose
No
6.22
24.1
8.1
0 - MTO
$14.34
1 Form A - SPST N.O.
2
Amps
80*
1000
2000
12V
750 Ω
General Purpose
Yes
6.22
24.1
8.1
10
$13.67
Max: 10
Min: 1
Step: 1
Add
1 Form A - SPST N.O.
2
Amps
80*
1000
3000
5V
200 Ω
General Purpose
No
6.22
24.1
8.1
0 - MTO
$15.07
1 Form A - SPST N.O.
2
Amps
80*
1000
2000
24V
2000 Ω
General Purpose
Yes
6.22
24.1
8.1
10
$14.74
Max: 10
Min: 1
Step: 1
Add
