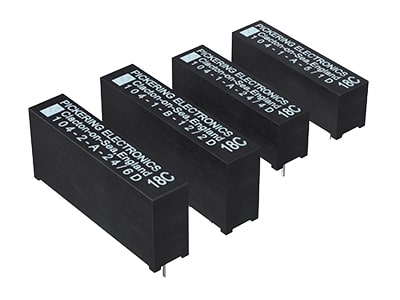

HIGH VOLTAGE 4KV REED RELAY

Pickering Series 104

pel-series-104-relays

High Voltage SIL / SIP Reed Relays - For up to 4 kilovolts

High Voltage SIL / SIP Reed Relays - For up to 4 kilovolts

Pickering’s new and improved Series 104 high voltage isolation reed relays. These relays can now stand-off up to 4kV, switching at up to 25W.

Series 104 reed relays are suitable for many applications including mixed signal semiconductor testers, high-end cable testers, backplane testers, medical electronics, electric vehicles, solar energy and high voltage instrumentation.

  • Highest quality instrumentation grade reed switches
  • 5, 12 and 24 Volt coils are standard, with or without internal diode
  • Small size HV isolation reed relay for up to 4000 V stand-off
  • Form A (energize to make) or Form B (energize to break) configurations
  • One or two reed switches in a single package
  • Suitable for mixed signal testing, transformer or cable testing
  • Dry and mercury wetted reed switches available
  • 100% tested for dynamic contact resistance
  • Many benefits compared to industry standard relays. Learn more here >.

View Data Sheet PDF

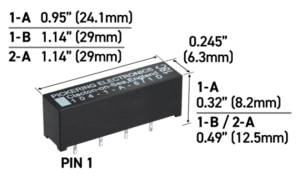

The Series 104 is a range of Single-In-Line reed relays intended for voltages that are beyond the capabilities of conventional SIL reed relays.

They are suitable for many high voltage applications such as transformer or cable testing, mixed signal testing, electric vehicles, solar energy, medical equipment, mining and mass spectrometry or any other automatic test equipment where high voltages are involved.

Where mains voltages are switched, for example to control and isolate S.C.R. or triac gates, these reed relays are an ideal choice.

One or two Form A (energize to make) or one Form B (energize to break) configurations are available.

The range features an internal mu-metal screen to eliminate problems that would otherwise be experienced due to magnetic interaction when they are closely stacked.

Four types of dry switches are available, capable of standing-off 1, 1.5, 3 or 4kV d.c. The 3kV version has an increased clearance between the switch and coil pins to accommodate the higher voltage. The 4kV’s higher standoff can improve performance or allow increase in the equipment specification.

Mercury wetted devices are also available for applications where bounce free switching is required. These are rated at 1500 volts d.c. minimum stand-off, 500 volts d.c. switching at up to 50 watts.

View Data Sheet PDF Request Free Samples

Download the Series 104 Datasheet
All our data sheets have been recently updated to include additional environmental specifications, mechanical characteristics and relay weights, RF plots for coaxial relays (showing VSWR, isolation and insertion loss), interactive links to further useful information, comparison tables to similar relay ranges and much more.
Download the Series 104 3D Models
The download is a zip file containing 3D models in STEP, IGS and SLDPRT formats (free viewers are available for these formats).
  • Free Sample Service - determining which components to design in can be challenging. Fortunately, here at Pickering Electronics, we provide free working samples to help you evaluate our high-quality Reed Relays.
  • Reed Relay Selector Tool - this tool will help you narrow down our large offering to get you the correct reed relay for your application. Once you narrow your selections down you can download a relay datasheet for more information, purchase in stock items or request a quote to find out lead times of made to order (MTO) relays.
  • Concise Tech Guide - this guide will help you to maximise the reliability of your design.
  • Quality Assurance - learn more about the various accreditations and certifications that Pickering holds.
  • Custom Designed Reed Relays - With over a thousand catalog parts there is plenty of choice when choosing the right Reed Relay for your product, but if you cannot find one suitable for your needs Pickering can customize our standard reed relay parts to suit your specific requirements and applications.

All Pickering reed relays feature the highest quality instrumentation grade reed switches making them suitable for the most demanding applications. Internal mu-metal magnetic screens (optional on Series 103) allow very high packing density. Diodes are optional.

The below table will help you narrow down our offering to get you the correct reed relay for your application.

Apply
Reset
PEL Contact Configuration
Coil Voltage
Switching Current
(Amps)
Switching Power
(Watts)
PEL Diode
Switching Voltage
(DC/AC peak)
to GO
Stand-off Voltage
(DC/AC peak)
to GO
Width (mm)
to GO
Depth (mm)
to GO
Height (mm)
to GO
Category
Apply
Reset
If you experience any technical difficulties whilst loading this page, please clear your browser cache and reload. Still having trouble? Contact us here
If you experience any technical difficulties whilst loading this page, please clear your browser cache and reload. Still having trouble? Contact us here
Scroll right to view full data information
Showing 1 – 5 of 60 results Showing all 60 results Showing the single result No results found
5 per page
Filters Sort results
Reset Apply
Part Number
Contact Configuration
Switching Current (Amps)
Switching Power (Watts)
Switching Voltage (DC or AC peak)
Stand-off Voltage (DC or AC peak)
Coil Voltage
Coil Resistance (Ω)
Switch Type
Diode
Depth (mm)
Width (mm)
Height (mm)
View Datasheet
Stock
Price
Add to Bag
1 Form A - SPST N.O.
1
Amps
25
1000
2000
5V
375 Ω
2KV Standoff
No
6.22
24.1
8.13
20
$12.17
Max: 20
Min: 1
Step: 1
Add
2 Form A - DPST N.O.
1
Amps
25
1000
1500
12V
750 Ω
1.5KV Standoff
No
6.22
29
12.5
0 - MTO
$16.10
1 Form A - SPST N.O.
1
Amps
25
1000
3000
5V
220 Ω
3KV Standoff
Yes
6.22
24.1
8.13
3734
$14.20
Max: 3734
Min: 1
Step: 1
Add
2 Form A - DPST N.O.
2
Amps
50
500
500
12V
275 Ω
Standard Mercury
Yes
6.22
29
12.5
9
$49.45
Max: 9
Min: 1
Step: 1
Add
1 Form B - SPST N.C.
1
Amps
25
500
1500
24V
3000 Ω
1.5KV Standoff
No
6.22
29
12.5
4
$15.83
Max: 4
Min: 1
Step: 1
Add
