REED RELAYS FOR LOW CAPACITANCE

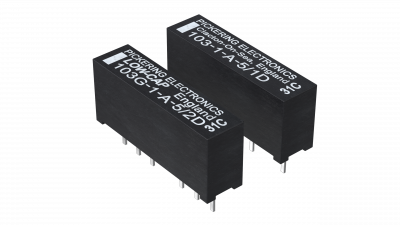

Pickering’s Series 103, 103M & 103GM Reed Relays are a great choice for low capacitance applications.

pel-series-103-relays

In many switching applications, there can be a need for low capacitance, for example, wide bandwidth A.T.E. switching matrices, attenuator switching or any other applications where exceptionally low levels of inter-terminal capacitances are required. Pickering’s Series 103 offers two different designs to give the best performance depending on the application requirements. With any standard reed relay, the switch is fitted inside a coil of similar length resulting in the coil and the switch blades acting like plates in a capacitor, along with the addition of fringing capacitance from internal connections and the magnetic screen.

The 103 and 103M versions minimize this with a much shorter coil, low permittivity potting compounds and where fitted, a modified magnetic screen. This results in closed switch to coil capacitance typically 0.4pF, compared to typically 2.5pF for a standard SIP/SIL reed relay. The 103G and 103GM utilize a coaxial screen between the switch and the coil which when driven by an active guard, results in closed switch to coil capacitance of typically 0.1pF.

The option of an internal magnetic screen ensures correct operation if stacking side by side is required and all types use instrumentation grade reed switches to ensure excellent low-level performance and long life.

Series 103 – Low Capacitance

Up to 20 W switching. Stacking on 0.2 inches pitch. 1 Form A configurations. Insulation resistance >1012 Ω. Suitable for wide bandwidth A.T.E. switching matrices and attenuator switching.

These relay ranges do however have internal mu-metal magnetic screens fitted. In high density applications when more than one relay may be operated at any time, for example, ATE switching matrices, it is usually necessary to use a relay that includes internal mu-metal magnetic screening. Without this, the operate and release voltages of the relays will be altered by the extraneous fields from adjacent devices. This means that when temperature effects are also considered, it may not be possible to operate a relay at its nominal coil voltage. A magnetic screen is therefore important when relays are used in this way. However, the addition of this screen does have the effect of slightly increasing the capacitance figures of the relay.

Learn MoreRequest Free Evaluation Samples

Shop Reed Relays for Low Capacitance

The below table will help you narrow down our offering to get you the correct reed relay for your application.

Once you narrow your selections down you can download a reed relay data sheet for more information or request a quote to find out prices and lead times.

Apply
Reset
PEL Series
1
PEL Contact Configuration
Coil Voltage
Switching Current
(Amps)
Switching Power
(Watts)
PEL Diode
Switching Voltage
(DC/AC peak)
to GO
Stand-off Voltage
(DC/AC peak)
to GO
Width (mm)
to GO
Depth (mm)
to GO
Height (mm)
to GO
Category
Apply
Reset
If you experience any technical difficulties whilst loading this page, please clear your browser cache and reload. Still having trouble? Contact us here
If you experience any technical difficulties whilst loading this page, please clear your browser cache and reload. Still having trouble? Contact us here
Scroll right to view full data information
Showing 1 – 7 of 28 results Showing all 28 results Showing the single result No results found
7 per page
Clear filters
PEL Series : Series 103
Clear filters
Filters Sort results
Reset Apply
Part Number
Contact Configuration
Switching Current (Amps)
Switching Power (Watts)
Switching Voltage (DC or AC peak)
Stand-off Voltage (DC or AC peak)
Coil Voltage
Coil Resistance (Ω)
Switch Type
Diode
Depth (mm)
Width (mm)
Height (mm)
View Datasheet
Stock
Price
Add to Bag
1 Form A - SPST N.O.
0.5
Amps
10
200
240
12V
1000 Ω
Low Level Dry Reed
No
4.8
19.1
8.1
0 - MTO
$11.76
1 Form A - SPST N.O.
0.5
Amps
10
200
240
5V
150 Ω
Low Level Dry Reed
No
4.8
19.1
8.1
0 - MTO
$10.88
1 Form A - SPST N.O.
0.5
Amps
10
200
240
3V
300 Ω
Low Level Dry Reed
Yes
4.8
19.1
8.1
0 - MTO
$13.21
1 Form A - SPST N.O.
0.5
Amps
10
200
240
3
300 Ω
Low Level Dry Reed
Yes
4.8
19.1
8.1
12
$11.92
Max: 12
Min: 1
Step: 1
Add
1 Form A - SPST N.O.
0.5
Amps
10
200
240
3V
300 Ω
Low Level Dry Reed
No
4.8
19.1
8.1
0 - MTO
$12.80
1 Form A - SPST N.O.
0.5
Amps
10
200
240
3
300 Ω
Low Level Dry Reed
No
4.8
19.1
8.1
0 - MTO
$11.52
1 Form A - SPST N.O.
1
Amps
15
200
240
5V
500 Ω
General Dry Reed
No
4.8
19.1
8.1
0 - MTO
$12.93
