High Voltage

Please see below Pickering’s Series 60 & 65 high voltage reed relays.

These relays can stand-off 15kV, switching at up to 50W.

Series 60 & 65 reed relays are suitable for many applications including high-end cable testers, backplane testers, big physics and high voltage instrumentation.

Pickering Series 60 & 65

High Voltage Dry Reed Relays
For up to 15 kV

SoftCenter™ construction
• Many benefits compared to industry standard relays. Learn more here >.
• Up to 15 kV stand-off
• 12.5 kV switching
• Small size
• Easy mounting
• Long life
• Fully encapsulated

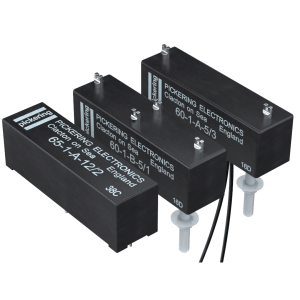

Series 60 Chassis mounting with solder connections on the top face

Series 65 Printed circuit mounting

The Series 60 and 65 ranges of high voltage reed relays have been manufactured for many years and remain popular due to their small size and ease of use.

They are available for up to 15kV stand-off, 12.5kV switching at 50 Watts maximum. Tungsten plated contacts ensure a long and reliable life.

Both Form A (energize to make) and Form B (energize to break) configurations are available and it is usually possible to achieve a Form C (change-over) function by using a Form A and a Form B
type together.

Form B types are magnetically biased and should not be mounted directly onto ferrous metal chassis or less than 1.5 inches (38mm) away from other relays as the coil operating voltage characteristics will be altered due to magnetic interaction. The coils of Form B relays are polarity sensitive, the positive connection is identified by a red spot.

Form A types can be mounted on ferrous chassis but a space of 1 inch (25mm) should be allowed between adjacent relays. 5, 12, and 24 volt coils are available as standard other voltages can be supplied to special order, please contact our sales office.

If similar relays with “push-on” connectors are preferred, please look at our Series 62 and Series 63.

The below table will help you narrow down our offering to get you the correct reed relay for your application.

Once you narrow your selections down you can download a reed relay data sheet for more information or request a quote to find out prices and lead times.

PEL Series
2
PEL Contact Configuration
Coil Voltage
Switching Current
(Amps)
Switching Power
(Watts)
PEL Diode
Switching Voltage
(DC/AC peak)
to GO
Stand-off Voltage
(DC/AC peak)
to GO
Width (mm)
to GO
Depth (mm)
to GO
Height (mm)
to GO
Category
Scroll right to view full data information
Showing 1 – 20 of 27 results Showing all 27 results Showing the single result No results found
20 per page
Clear filters
PEL Series : Series 60
PEL Series : Series 65
Clear filters
Filters Sort
Part Number
Contact Configuration
Switching Current (Amps)
Switching Power (Watts)
Switching Voltage (DC or AC peak)
Stand-off Voltage (DC or AC peak)
Coil Voltage
Coil Resistance (Ω)
Switch Type
Diode
Depth (mm)
Width (mm)
Height (mm)
View Datasheet
Stock
Price
Add to Bag
65 high voltage 3A reed relay
1 Form B - SPST N.C.
3
Amps
50
7500
10000
5V
35 Ω
10KV Standoff
No
16
57.9
18
0 - MTO
$46.59
65 high voltage 3A reed relay
1 Form B - SPST N.C.
3
Amps
50
7500
10000
12V
150 Ω
10KV Standoff
No
16
57.9
18
0 - MTO
$46.66
65 high voltage 3A reed relay
1 Form A - SPST N.O.
3
Amps
50
3500
5000
5V
35 Ω
5KV Standoff
No
16
57.9
18
1
$37.55
Max: 1
Min: 1
Step: 1
Add
65 high voltage 3A reed relay
1 Form B - SPST N.C.
3
Amps
50
7500
10000
24V
500 Ω
10KV Standoff
No
16
57.9
18
3
$46.64
Max: 3
Min: 1
Step: 1
Add
65 high voltage 3A reed relay
1 Form A - SPST N.O.
3
Amps
50
3500
5000
12V
150 Ω
5KV Standoff
No
16
57.9
18
5
$37.62
Max: 5
Min: 1
Step: 1
Add
65 high voltage 3A reed relay
1 Form A - SPST N.O.
3
Amps
50
3500
5000
24V
500 Ω
5KV Standoff
No
16
57.9
18
5
$37.90
Max: 5
Min: 1
Step: 1
Add
65 high voltage 3A reed relay
1 Form A - SPST N.O.
3
Amps
50
7500
10000
5V
35 Ω
10KV Standoff
No
16
57.9
18
0 - MTO
$38.02
65 high voltage 3A reed relay
1 Form A - SPST N.O.
3
Amps
50
7500
10000
12V
150 Ω
10KV Standoff
No
16
57.9
18
4
$38.08
Max: 4
Min: 1
Step: 1
Add
65 high voltage 3A reed relay
1 Form A - SPST N.O.
3
Amps
50
7500
10000
24V
500 Ω
10KV Standoff
No
16
57.9
18
39
$38.38
Max: 39
Min: 1
Step: 1
Add
65 high voltage 3A reed relay
1 Form B - SPST N.C.
3
Amps
50
3500
5000
5V
35 Ω
5KV Standoff
No
16
57.9
18
0 - MTO
$46.24
65 high voltage 3A reed relay
1 Form B - SPST N.C.
3
Amps
50
3500
5000
12V
150 Ω
5KV Standoff
No
16
57.9
18
0 - MTO
$46.32
65 high voltage 3A reed relay
1 Form B - SPST N.C.
3
Amps
50
3500
5000
24V
500 Ω
5KV Standoff
No
16
57.9
18
1
$46.64
Max: 1
Min: 1
Step: 1
Add
1 Form B - SPST N.C.
3
Amps
50
7500
10000
12V
150 Ω
10KV Standoff
No
16
57.9
18
0 - MTO
$46.14
60 high voltage chassis mounting relays
1 Form A - SPST N.O.
3
Amps
50
7500
10000
5V
35 Ω
10KV Standoff
No
16
57.9
18
2
$37.54
Max: 2
Min: 1
Step: 1
Add
1 Form B - SPST N.C.
3
Amps
50
7500
10000
24V
500 Ω
10KV Standoff
No
16
57.9
18
27
$46.46
Max: 27
Min: 1
Step: 1
Add
60 high voltage chassis mounting relays
1 Form A - SPST N.O.
3
Amps
50
7500
10000
12V
150 Ω
10KV Standoff
No
16
57.9
18
10
$37.60
Max: 10
Min: 1
Step: 1
Add
60 high voltage chassis mounting relays
1 Form A - SPST N.O.
3
Amps
50
7500
10000
24V
500 Ω
10KV Standoff
No
16
57.9
18
12
$37.90
Max: 12
Min: 1
Step: 1
Add
60 high voltage chassis mounting relays
1 Form A - SPST N.O.
3
Amps
50
12500
15000
5V
20 Ω
15KV Standoff
No
16
57.9
18
0 - MTO
$65.84
60 high voltage chassis mounting relays
1 Form A - SPST N.O.
3
Amps
50
12500
15000
12V
50 Ω
15KV Standoff
No
16
57.9
18
22
$65.90
Max: 22
Min: 1
Step: 1
Add
60 high voltage chassis mounting relays
1 Form A - SPST N.O.
3
Amps
50
12500
15000
24V
200 Ω
15KV Standoff
No
16
57.9
18
31
$66.21
Max: 31
Min: 1
Step: 1
Add
