Surface Mount Pickering Reed Relays

All Pickering reed relays feature the highest quality instrumentation grade reed switches making them suitable for the most demanding applications.

Surface mount reed relays featuring internal mu-metal magnetic screens. Suitable for infa-red or vapour phase reflow soldering.

Pickering Series 200

Surface Mount Reed Relays
Including coaxical types for up to 5GHz

• SoftCenter™ construction
• Highest quality instrumentation grade switches
• Encapsulated in plastic package with internal mu-metal screen for side-by-side mounting without magnetic interaction
• Insulation resistance greater than 10E12 Ohms (1TOhms) for Form A devices
• For R.F. or high speed digital applications, 50 or 75 ohms coaxial devices are available in the same small package
• Wide range of switch configurations - 1 Form A, 1 Form B, 2 Form A. 1 Form C
• Dry and mercury wetted switches available
• 5 and 12 Volt coils are standard, with or without internal diode
• 100% tested for dynamic contact resistance

The Series 200 is a complete range of surface mount reed relays.Both dry and mercury wetted switches are available in a wide range of configurations including coaxial types for RF up to 5GHz, or high speed digital switching with a step response time of less than 30ps. Please contact our technical department for
supplementary RF data.

The special high temperature plastic package will withstand the temperatures associated with Infra-red or vapour phase reflow soldering processess. A flexible inner encapsulant protects the sensitive glass/metal reed switch seals - this is a very big advantage over the more usual hard moulded package.

Switching Current (Amps)
Coil Voltage
Contact Configuration
Diode
Switching Power (Watts)
Stand-Off Voltage (DC/AC peak)
Switching Voltage (DC/AC peak)
Depth (mm)
Height (mm)
Width (mm)
Series
1
Category
Showing 1 – 20 of 38 results Showing all 38 results Showing the single result No results found
Clear filters
Series : Series 200
Clear filters
20 per page
Filters Sort
Reset Apply
Part Number
Category
Contact Configuration
Switching Current (Amps)
Switching Power (Watts)
Switching Voltage (DC or AC peak)
Stand-off Voltage DC or AC peak
Coil Voltage
Coil Resistance (Ω)
Switch Type
Diode
Depth (mm)
Width (mm)
Height (mm)
View Datasheet
Price
Add to Quote

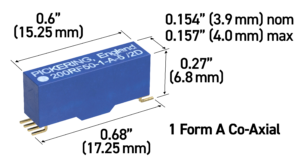

200RF75-1-A-5/2
200 DPST SMD surface mount reed relays
Surface Mount/Coax/RF
1 Form A - SPST N.O.
0.5
10
200
220
5V
250 Ω
Low Level Dry Reed
No
4
15.25
6.8
View PDF
$11.18
Max:
Min: 1
Step: 1
Add
200-1-A-12/2D
200 SPST surface mount reed relay SMD
Surface Mount
1 Form A - SPST N.O.
0.5
10
200
220
12V
1000 Ω
Low Level Dry Reed
Yes
4
15.25
6.8
View PDF
$7.54
Max:
Min: 1
Step: 1
Add
200-1-C-5/3
200 DPST SMD surface mount reed relays
Surface Mount
1 Form C - SPDT Changeover
0.25
3
200
220
5V
500 Ω
Changeover
No
6
20
9
View PDF
$10.94
Max:
Min: 1
Step: 1
Add
200-1-A-5/6D
200 SPST surface mount reed relay SMD
Surface Mount
1 Form A - SPST N.O.
2
50
500
550
5V
140 Ω
Std Mercury Reed
Yes
4
15.25
6.8
View PDF
$49.31
Max:
Min: 1
Step: 1
Add
200-1-A-12/2
200 SPST surface mount reed relay SMD
Surface Mount
1 Form A - SPST N.O.
0.5
10
200
220
12V
1000 Ω
Low Level Dry Reed
No
4
15.25
6.8
View PDF
$7.25
Max:
Min: 1
Step: 1
Add
200-1-C-12/3D
200 DPST SMD surface mount reed relays
Surface Mount
1 Form C - SPDT Changeover
0.25
3
200
220
12V
1000 Ω
Changeover
Yes
6
20
9
View PDF
$11.18
Max:
Min: 1
Step: 1
Add
200-1-A-5/6
200 SPST surface mount reed relay SMD
Surface Mount
1 Form A - SPST N.O.
2
50
500
550
5V
140 Ω
Std Mercury Reed
No
4
15.25
6.8
View PDF
$49.04
Max:
Min: 1
Step: 1
Add

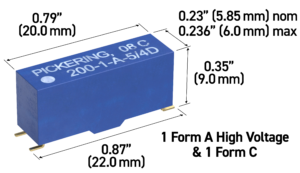

200-1-A-5/4D
200 SPST surface mount reed relay SMD
Surface Mount
1 Form A - SPST N.O.
0.5
10
500
550
5V
500 Ω
High Voltage Reed
Yes
6
20
9
View PDF
$9.81
Max:
Min: 1
Step: 1
Add
200-1-C-12/3
200 DPST SMD surface mount reed relays
Surface Mount
1 Form C - SPDT Changeover
0.25
3
200
220
12V
1000 Ω
Changeover
No
6
20
9
View PDF
$10.91
Max:
Min: 1
Step: 1
Add
200-1-A-5/1D
200 DPST SMD surface mount reed relays
Surface Mount
1 Form A - SPST N.O.
1
15
200
220
5V
500 Ω
General Dry Reed
Yes
4
15.25
6.8
View PDF
$7.58
Max:
Min: 1
Step: 1
Add
200-1-A-12/6D
200 SPST surface mount reed relay SMD
Surface Mount
1 Form A - SPST N.O.
2
50
500
550
12V
500 Ω
Std Mercury Reed
Yes
4
15.25
6.8
View PDF
$49.41
Max:
Min: 1
Step: 1
Add
200-1-A-5/4
200 SPST surface mount reed relay SMD
Surface Mount
1 Form A - SPST N.O.
0.5
10
500
550
5V
500 Ω
High Voltage Reed
No
6
20
9
View PDF
$9.54
Max:
Min: 1
Step: 1
Add

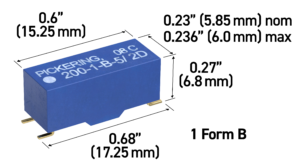

200-1-B-5/2D
200 DPST SMD surface mount reed relays
Surface Mount
1 Form B - SPST N.C.
0.5
10
200
220
5V
750 Ω
Low Level Dry Reed
Yes
6
15.25
6.8
View PDF
$11.14
Max:
Min: 1
Step: 1
Add
200-1-A-5/1
200 SPST surface mount reed relay SMD
Surface Mount
1 Form A - SPST N.O.
1
15
200
220
5V
500 Ω
General Dry Reed
No
4
15.25
6.8
View PDF
$7.31
Max:
Min: 1
Step: 1
Add
200-1-A-12/6
200 SPST surface mount reed relay SMD
Surface Mount
1 Form A - SPST N.O.
2
50
500
550
12V
500 Ω
Std Mercury Reed
No
4
15.25
6.8
View PDF
$49.14
Max:
Min: 1
Step: 1
Add
200-1-A-12/4D
200 SPST surface mount reed relay SMD
Surface Mount
1 Form A - SPST N.O.
0.5
10
500
550
12V
1000 Ω
High Voltage Reed
Yes
6
20
9
View PDF
$10.00
Max:
Min: 1
Step: 1
Add
200-1-B-5/2
200 DPST SMD surface mount reed relays
Surface Mount
1 Form B - SPST N.C.
0.5
10
200
220
5V
750 Ω
Low Level Dry Reed
No
6
15.25
6.8
View PDF
$10.83
Max:
Min: 1
Step: 1
Add
200-1-A-12/1D
200 SPST surface mount reed relay SMD
Surface Mount
1 Form A - SPST N.O.
1
15
200
220
12V
1000 Ω
General Dry Reed
Yes
4
15.25
6.8
View PDF
$7.63
Max:
Min: 1
Step: 1
Add
200-1-A-5/8D
200 SPST surface mount reed relay SMD
Surface Mount
1 Form A - SPST N.O.
2
50
500
550
5V
140 Ω
Position Insensitive Hg
Yes
4
15.25
6.8
View PDF
$49.31
Max:
Min: 1
Step: 1
Add
200-1-A-12/4
200 SPST surface mount reed relay SMD
Surface Mount
1 Form A - SPST N.O.
0.5
10
500
550
12V
1000 Ω
High Voltage Reed
No
6
20
9
View PDF
$9.73
Max:
Min: 1
Step: 1
Add
