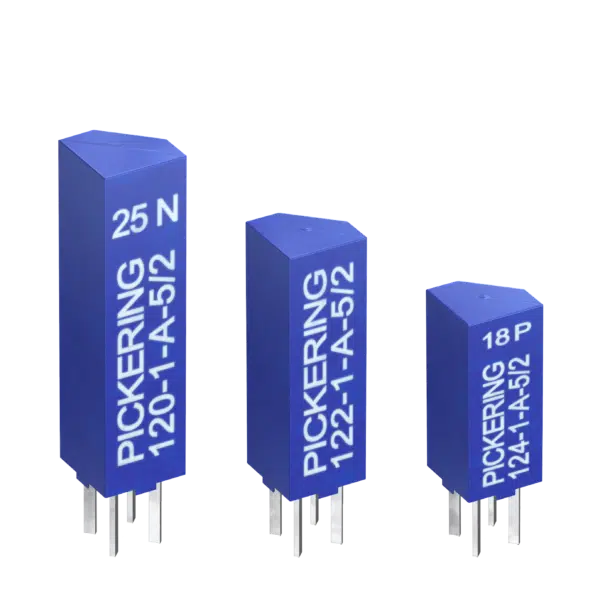

ULTRA-HIGH DENSITY 4MM REED RELAYS

Ultra-high density 4mm2 TM reed relay product lines are up to 1 Amp switching, whilst still stacking on a 4mm x 4mm pitch, allowing the highest packing density currently available in the industry.

The relays feature the highest quality instrumentation grade reed switches and internal mu-metal magnetic screens to minimise magnetic interaction when relays are stacked closely together.

4mm2 TM  reed relays are ideal for very high density applications such as A.T.E. switching matrices or multiplexers.

Many advantages over other typical industry reed relays, click here to learn more

124 Reed Relay

Series 124

The Series 124 reed relay range is part of Pickering’s new ultra-high density 4mm x 4mm product line, which take up the minimum board area of only 4mm x 4mm, allowing the highest packing density currently available.

The range features a sputtered ruthenium switch rated at 10 Watts, 0.5 Amps. These are the same reed switches as used in the long established Pickering Series 111, 111P and 117 but are orientated vertically within the package, allowing this high density.

Learn More

Request Free
Evaluation Samples

More Info

Series 122

The Series 122 10W rated reed relay is part of the successful 4mm2 TM product family that occupy a PCB footprint of only 4mm x 4mm, facilitating the highest packing density currently available. Series 122 relays measure 12.5mm in height and are rated with a switching current of 0.5A at 10W. 3V and 5V coils are available.

The device has pins on a 2mm square pitch. There are suitable connectors available from some manufacturers, both SMD and Through Hole, that will allow these relays to be stacked in either a row or in a matrix on a 4mm pitch.

If a higher rating is required, please consider our Series 120 which are rated up to 1.0 Amp at 20 Watts but with a higher profile height. If a lower profile height is required, please consider our Series 124 with a height of just 9.5mm whilst rated up to 10 Watts, 0.5 Amps switching.

Learn More

Request Free Evaluation Samples

More Info

Series 120

The Series 120 reed relay range takes up the minimum board area making them ideal for very high density applications such as A.T.E. switching matrices or multiplexers. Requiring a board area of only 4mm x 4mm, these relays allow the highest packing density currently available.

Two switch types are available, a general purpose sputtered ruthenium switch rated at 15 Watts, 1 Amp (3 volt version) or 20 Watts, 1 Amp (5 & 12 volt versions) and a low level sputtered ruthenium switch rated at 10 Watts, 0.5 Amps.

Learn More

Request Free Evaluation Samples

More Info

Shop Reed Relays for Ultra-High Density

The below table will help you narrow down our offering to get you the correct reed relay for your application.

Once you narrow your selections down you can download a reed relay data sheet for more information or request a quote to find out prices and lead times.

PEL Series
4
PEL Contact Configuration
Coil Voltage
Switching Current
(Amps)
Switching Power
(Watts)
PEL Diode
Switching Voltage
(DC/AC peak)
to GO
Stand-off Voltage
(DC/AC peak)
to GO
Width (mm)
to GO
Depth (mm)
to GO
Height (mm)
to GO
Category
If you experience any technical difficulties whilst loading this page, please clear your browser cache and reload. Still having trouble? Contact us here
If you experience any technical difficulties whilst loading this page, please clear your browser cache and reload. Still having trouble? Contact us here
Scroll right to view full data information
Showing 1 – 7 of 10 results Showing all 10 results Showing the single result No results found
7 per page
Clear filters
PEL Series : Series 120
PEL Series : Series 122
PEL Series : Series 124
PEL Series:
Clear filters
Filters Sort results
Reset Apply
Part Number
Pickering Compare
Contact Configuration
Switching Current (Amps)
Switching Power (Watts)
Switching Voltage (DC or AC peak)
Stand-off Voltage (DC or AC peak)
Coil Voltage
Coil Resistance (Ω)
Switch Type
Diode
Depth (mm)
Width (mm)
Height (mm)
View Datasheet
Stock
Price
Add to Bag
1 Form A - SPST N.O.
0.5
Amps
10
170
200
3V
75 Ω
Low Level Dry Reed
No
3.9
3.9
9.5
7
$12.31
Max: 7
Min: 1
Step: 1
Add
1 Form A - SPST N.O.
0.5
Amps
10
170
200
5V
200 Ω
Low Level Dry Reed
No
3.9
3.9
9.5
0 - MTO
$12.42
1 Form A - SPST N.O.
0.5
Amps
10
200
240
5V
350 Ω
Low Level Dry Reed
No
3.9
3.9
12.5
2
$11.33
Max: 2
Min: 1
Step: 1
Add
1 Form A - SPST N.O.
0.5
Amps
10
200
240
3V
125 Ω
Low Level Dry Reed
No
3.9
3.9
12.5
273
$11.27
Max: 273
Min: 1
Step: 1
Add
1 Form A - SPST N.O.
1
Amps
15
200
240
3V
200 Ω
General Dry Reed
No
3.9
3.9
15.5
56
$10.23
Max: 56
Min: 1
Step: 1
Add
1 Form A - SPST N.O.
1
Amps
20
200
240
5V
300 Ω
General Dry Reed
No
3.9
3.9
15.5
644
$10.26
Max: 644
Min: 1
Step: 1
Add
1 Form A - SPST N.O.
1
Amps
20
200
240
12V
800 Ω
General Dry Reed
No
3.9
3.9
15.5
58
$10.39
Max: 58
Min: 1
Step: 1
Add
