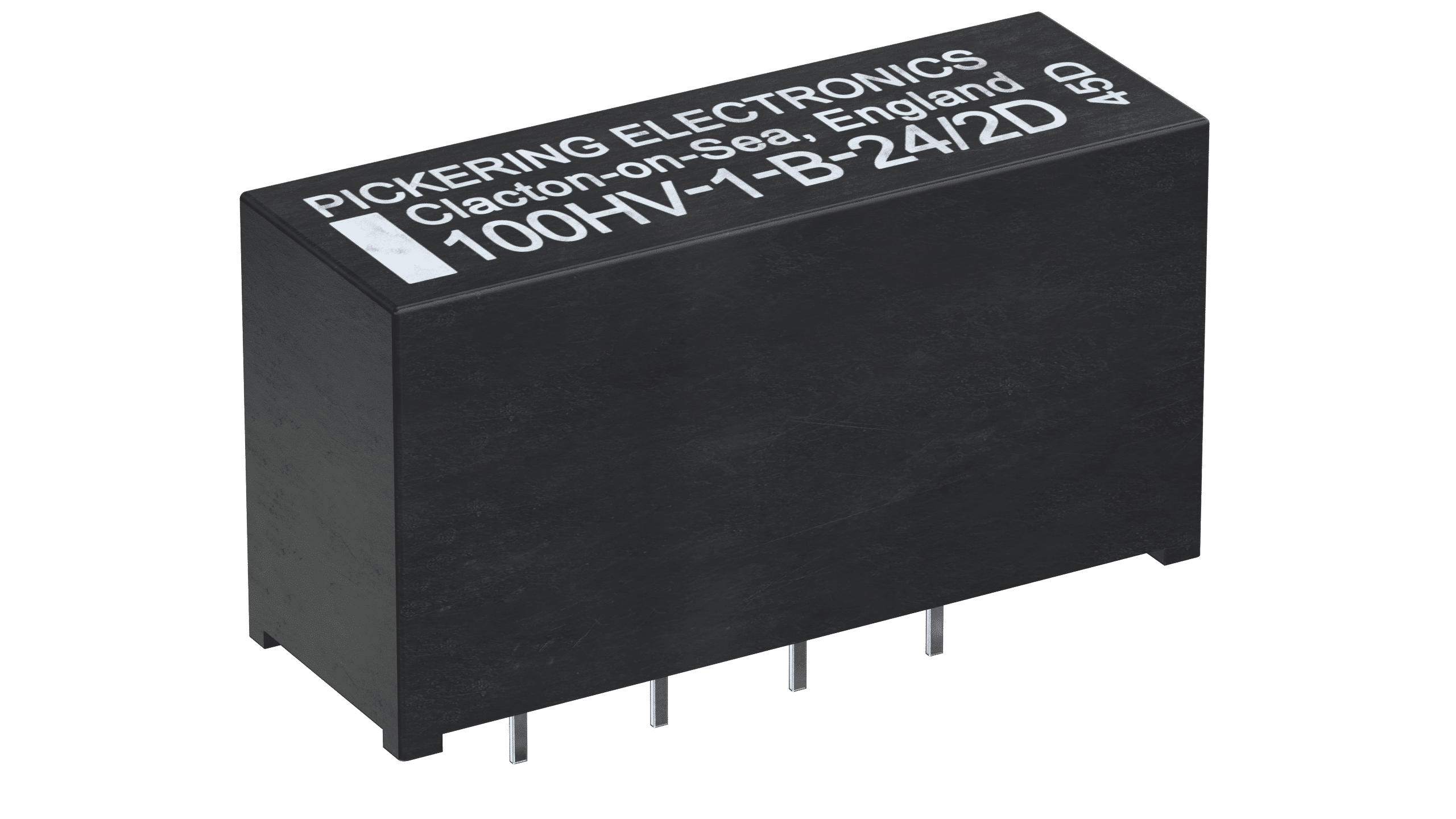

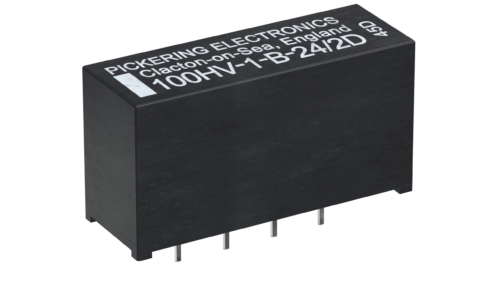

100HV-1-B-5/2D
$27.90 Excl. Vat, Tax and Duties
4-6 weeks for additional manufactured stock
Availability: 17 in stock
ComparePickering Series 100HV
- High Voltage SIL High Coil Resistance Reed Relays
- 2000 kilovolts stand-off
- 1 Form B
- 5 V Coil
- Designed and manufactured by Pickering in the UK and Czech Republic (EU)
To learn more about this series click here
Many benefits compared to industry-standard relays. Learn more here
Custom options are available. Learn more here
| Dimensions | 55663927 × 556629 mm |
|---|---|
| PEL Contact Configuration | 1 Form B – SPST N.C. |
| PEL Switching Current (Amps) | 1 |
| PEL Switching Power (Watts) | 25 |
| PEL Switching Voltage | 1000 |
| PEL Standoff Voltage | 1000 |
| PEL Coil Voltage | 5V |
| PEL Coil Resistance | 500 Ω |
| PEL Diode | Yes |
| PEL Depth (mm) | 10.2 |
| PEL Width (mm) | 29 |
| PEL Height (mm) | 15.2 |
| PEL Series | Series 100HV |
| PEL Switch Type | 2KV Standoff |
Quality Assurance
Pickering reed relays are subjected to continuous inspection during the manufacturing process and after a strenuous thermal cycling routine, every reed relay is 100% tested for all operating parameters.
Pickering are certified to ISO 9001:2015 and audited by the British Standards Institution.
