100HV-2-A-24/1D

$27.29 Excl. Vat

16 in stock




Click to see product specifications

Please note -  Prices above excl. tax and duties
For availability, lead time and delivery options please request a quote. For larger quantities request a quote below or fill out this form

Back to the Reed Relay Selector
SKU: 100HV-2-A-24/1D Category:

Description

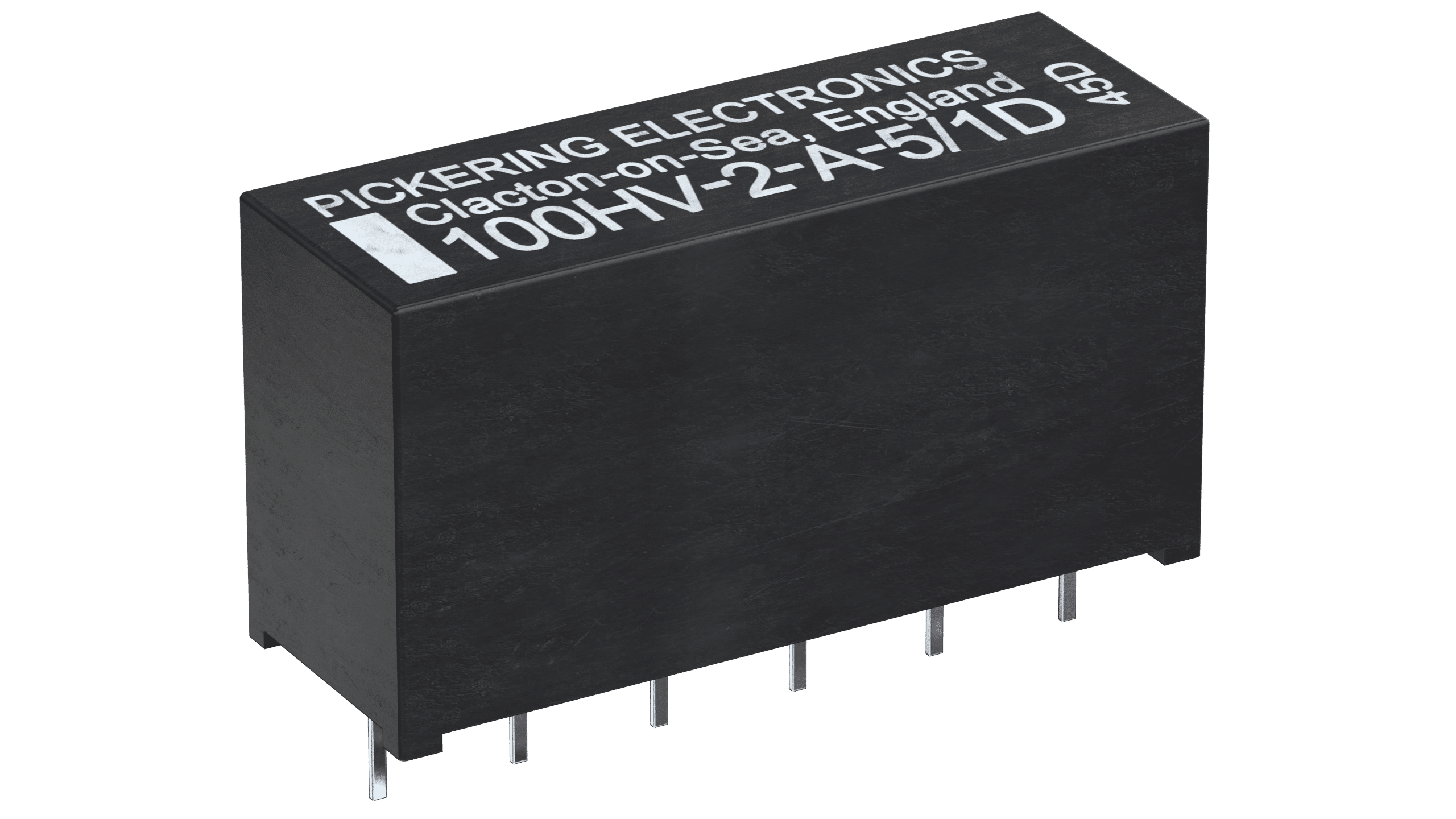

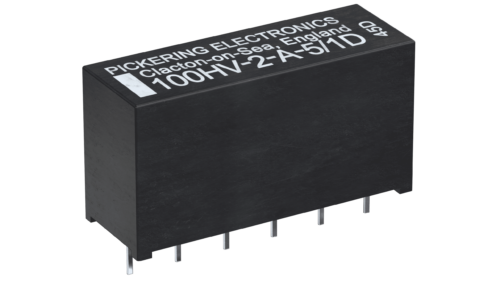

Pickering Series 100HV

  • High Voltage SIL High Coil Resistance Reed Relays
  • 1500 kilovolts stand-off
  • 2 Form A
  • 24 V Coil

Download Data Sheet PDF

Additional information

Dimensions 55663927 × 556629 mm
PEL Contact Configuration

2 Form A – DPST N.O.

PEL Switching Current (Amps)

1

PEL Switching Power (Watts)

25

PEL Switching Voltage

1000

PEL Standoff Voltage

1000

PEL Coil Voltage

24V

PEL Coil Resistance

6000 Ω

PEL Diode

Yes

PEL Depth (mm)

10.2

PEL Width (mm)

29

PEL Height (mm)

15.2

PEL Series

Series 100HV

PEL Switch Type

1.5KV Standoff
