119L-2-A-12/1D
$24.34 Excl. Vat, Tax and Duties
4-6 weeks for additional manufactured stock
Availability: 32 in stock
| 1-24 | 25-99 | 100-249 | 250+ |
| $24.34 | $21.91 | $20.69 | $19.47 |

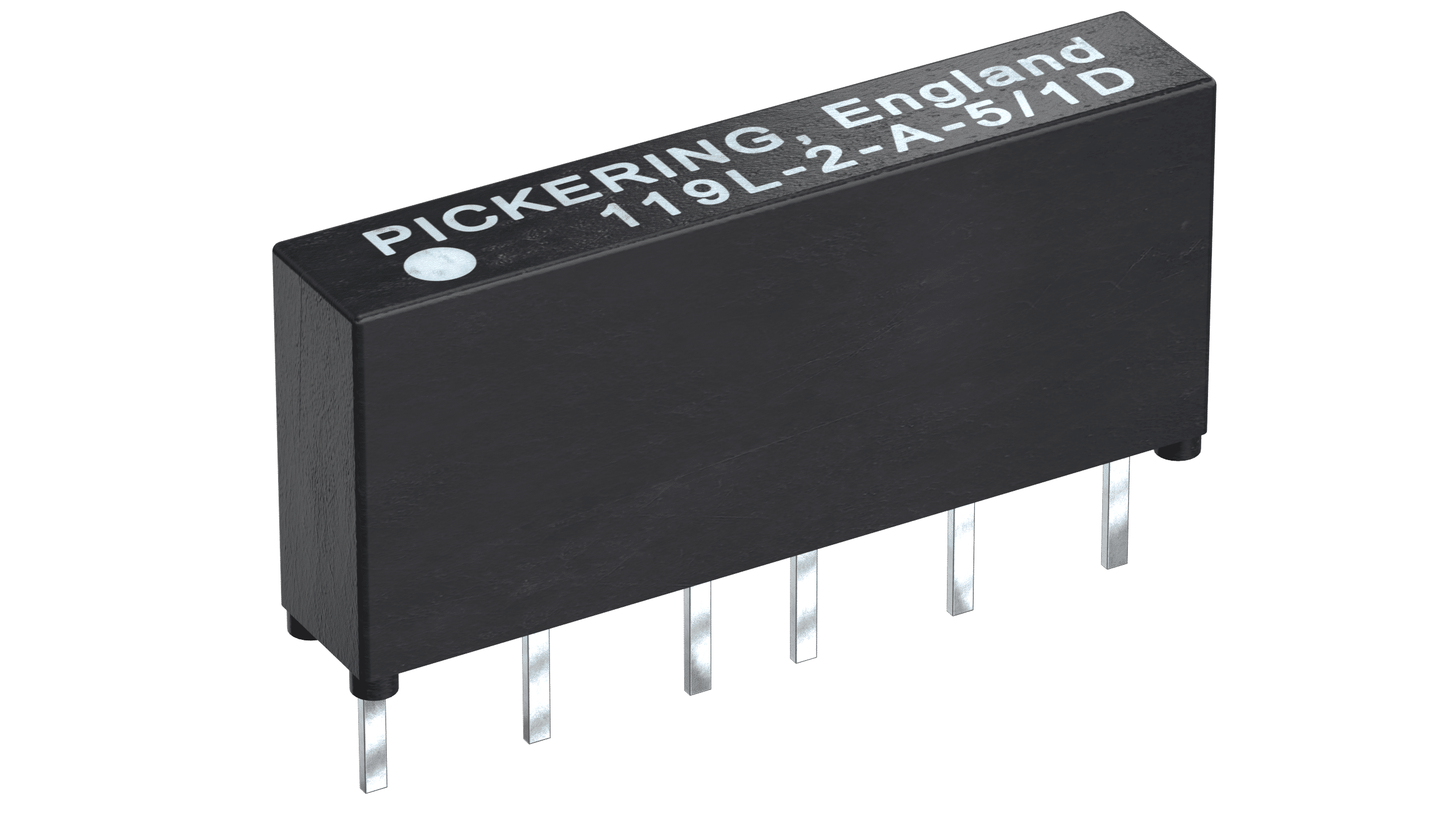

Pickering Series 119L
- Low-Level High Voltage Micro-SIL Reed Relays
- 1000kV stand-off
- 2 Form A
- 12 V Coil
- Up to 10 W switching
- Designed and manufactured by Pickering in the UK and Czech Republic (EU)
To learn more about this series click here
Many benefits compared to industry-standard relays. Learn more here
Custom options are available. Learn more here
| Dimensions | 55663927 × 556629 mm |
|---|---|
| PEL Contact Configuration | 2 Form A – DPST N.O. |
| PEL Switching Current (Amps) | 0.7 |
| PEL Switching Power (Watts) | 10 |
| PEL Switching Voltage | 1000 |
| PEL Standoff Voltage | 1000 |
| PEL Coil Voltage | 12V |
| PEL Coil Resistance | 400 Ω |
| PEL Diode | Yes |
| PEL Depth (mm) | 3.7 |
| PEL Width (mm) | 20.1 |
| PEL Height (mm) | 8.9 |
| PEL Series | Series 119 |
| PEL Switch Type | 1KV Standoff |
Quality Assurance
Pickering reed relays are subjected to continuous inspection during the manufacturing process and after a strenuous thermal cycling routine, every reed relay is 100% tested for all operating parameters.
Pickering are certified to ISO 9001:2015 and audited by the British Standards Institution.
Free Evaluation Samples
Did you know Pickering provide free working samples to help you evaluate our high-quality reed relays without reducing your R&D budget? Request your free samples today.
