125-2-A-5/2D Reed Relay
$13.24 Excl. Vat, Tax and Duties
Additional stock lead time: 4-6 weeks* Lead times may vary depending on order quantity.
Pickering Series 125
- Ultra High Density Reed Relays
- Single-in-Line Reed Relays
- Stacks on a 5mm x 5mm pitch
- Up to 1 A, 20 W
- Up to 200V switching and 1kV standoff (switch to coil
- 3 V, 5 V & 12 V Coils available
- Series 125 has the smallest footprint for 1 Form A RF, 1 Form B, 1 Form C and 2 Form A relays in the industry
- Try before you buy with Pickering’s free sample service >
- Designed and manufactured by Pickering in the UK and Czech Republic (EU)
To learn more about this series click here
No stock available - made to order. Please add to request for quote list
Discount per quantity
| Quantity | 1 - 24 | 25 - 99 | 100 - 249 | 250+ |
|---|---|---|---|---|
| Price | $13.24 | $11.92 | $11.25 | $10.59 |
Pickering Series 125
- Ultra High Density Reed Relays
- Single-in-Line Reed Relays
- Stacks on a 5mm x 5mm pitch
- Up to 1 A, 20 W
- Up to 200V switching and 1kV standoff (switch to coil
- 3 V, 5 V & 12 V Coils available
- Series 125 has the smallest footprint for 1 Form A RF, 1 Form B, 1 Form C and 2 Form A relays in the industry
- Try before you buy with Pickering’s free sample service >
- Designed and manufactured by Pickering in the UK and Czech Republic (EU)
To learn more about this series click here
| PEL Switching Current (Amps) | 1 |
|---|---|
| PEL Switching Power (Watts) | 10 |
| PEL Switching Voltage | 200 |
| PEL Standoff Voltage | 240 |
| PEL Coil Voltage | 5V |
| PEL Coil Resistance | 375 Ω |
| PEL Diode | Yes |

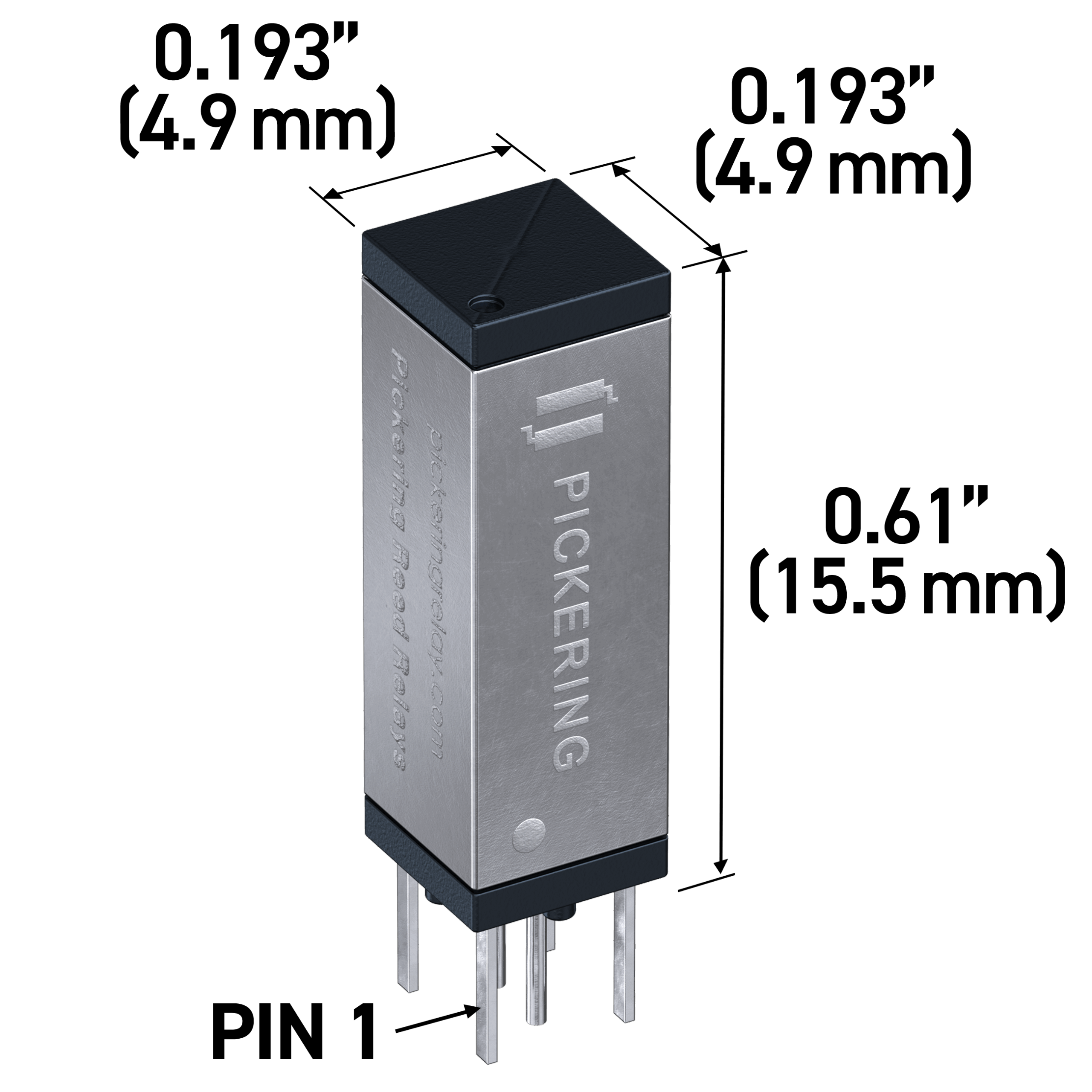

| PEL Depth (mm) | 4.9 |
| PEL Width (mm) | 4.9 |
| PEL Height (mm) | 15.5 |
| PEL Switch Type | General Purpose |
| PEL Contact Configuration | 2 Form A – DPST N.O. |
| PEL Series | Series 125 |
Quality Assurance
Pickering reed relays are subjected to continuous inspection during the manufacturing process and after a strenuous thermal cycling routine, every reed relay is 100% tested for all operating parameters.
Pickering are certified to ISO 9001:2015 and audited by the British Standards Institution.
Free Evaluation Samples
Did you know Pickering provide free working samples to help you evaluate our high-quality reed relays without reducing your R&D budget? Request your free samples today.
