620N-1B12-5DTB1
$141.98 Excl. Vat, Tax and Duties
Contact us for additional stock lead time
No stock available - made to order. Please add to request for quote list
Discount per quantity
| Quantity | 1 - 24 | 25 - 99 | 100 - 249 | 250+ |
|---|---|---|---|---|
| Price | $141.98 | $127.78 | $120.68 | $113.58 |

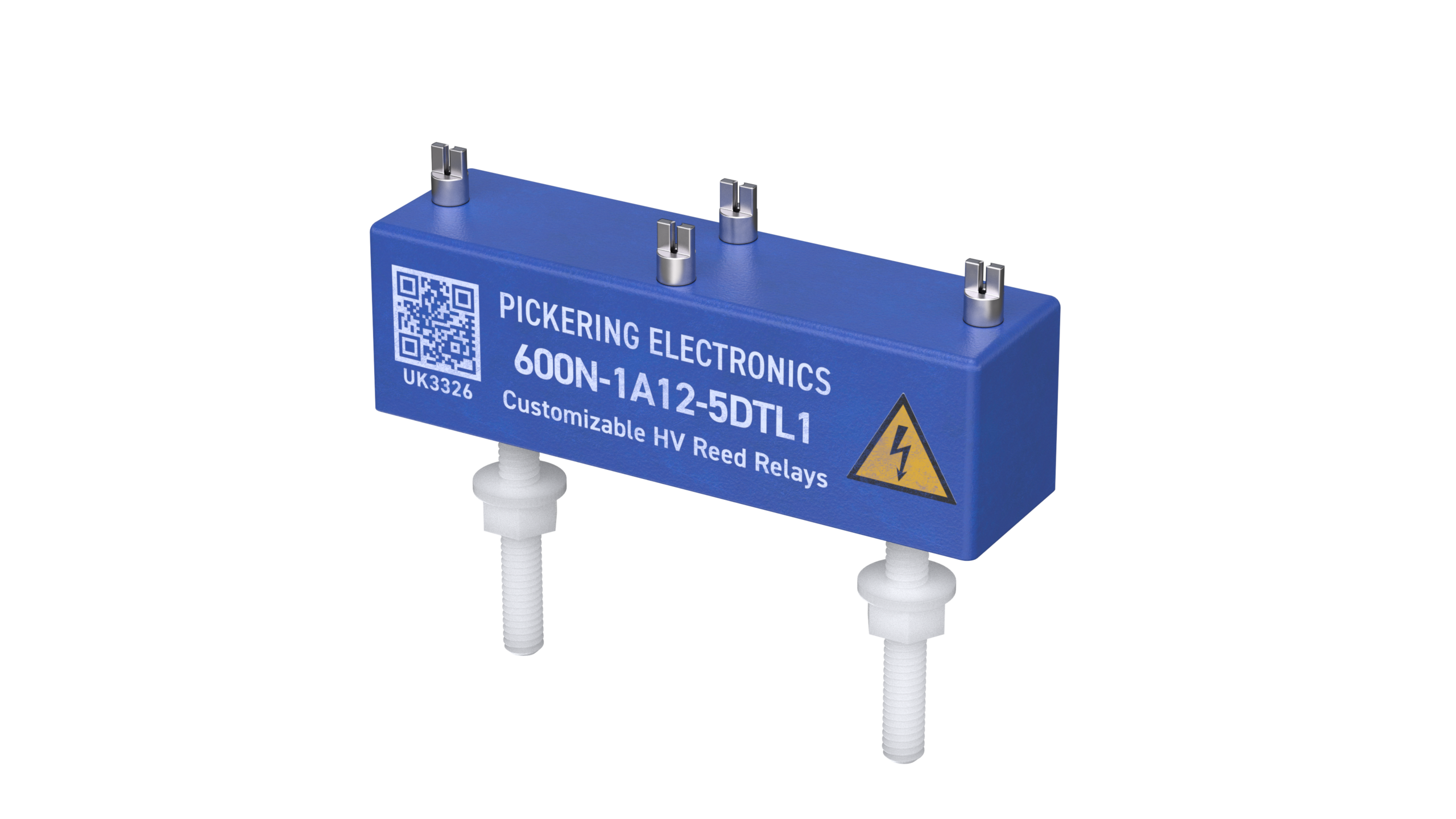

Pickering Series 620
- High Voltage Customizable Reed Relays
- 12V Coil
- Diode
- Connection type: Turret Lugs
- Designed and manufactured by Pickering in the UK and Czech Republic (EU)
- Currently pre-production parts are available for testing.
- Try before you buy with Pickering’s free sample service >
Whilst many part numbers are available as standard, the Series 600 & 620 reed relays are build to be the most customizable high voltage reed relays available in the world.
To learn more about this series click here
Many benefits compared to industry-standard relays. Learn more here
Custom options are available. Learn more here
| PEL Contact Configuration | 1 Form B – SPST N.C. |
|---|---|
| PEL Switching Current (Amps) | 3 |
| PEL Switching Power (Watts) | 50 |
| PEL Switching Voltage | 12500 |
| PEL Standoff Voltage | 15000 |
| PEL Coil Voltage | 12V |
| PEL Coil Resistance | 150 Ω |
| PEL Diode | Yes |
| PEL Depth (mm) | 19 |
| PEL Width (mm) | 68 |
| PEL Height (mm) | 19.8 |
| PEL Series | Series 620 |
Quality Assurance
Pickering reed relays are subjected to continuous inspection during the manufacturing process and after a strenuous thermal cycling routine, every reed relay is 100% tested for all operating parameters.
Pickering are certified to ISO 9001:2015 and audited by the British Standards Institution.
Free Evaluation Samples
Did you know Pickering provide free working samples to help you evaluate our high-quality reed relays without reducing your R&D budget? Request your free samples today.
