68-1-A-24/4D
$69.92 Excl. Vat, Tax and Duties
Contact us for additional stock lead time
No stock available - made to order. Please add to request for quote list
Discount per quantity
| Quantity | 1 - 24 | 25 - 99 | 100 - 249 | 250+ |
|---|---|---|---|---|
| Price | $69.92 | $62.93 | $59.43 | $55.94 |
Pickering Series 68
- High Voltage Dry Reed Relays
- For up to 8kV & 200W
- 1 Form A
- 24 V Coil
- Designed and manufactured by Pickering in the UK and Czech Republic (EU)
To learn more about this series click here
Many benefits compared to industry-standard relays. Learn more here
Custom options are available. Learn more here
| PEL Contact Configuration | 1 Form A – SPST N.O. |
|---|---|
| PEL Switching Current (Amps) | 3 |
| PEL Switching Power (Watts) | 200 |
| PEL Switching Voltage | 6000 |
| PEL Standoff Voltage | 8000 |
| PEL Coil Voltage | 24V |
| PEL Coil Resistance | 600 Ω |
| PEL Diode | Yes |

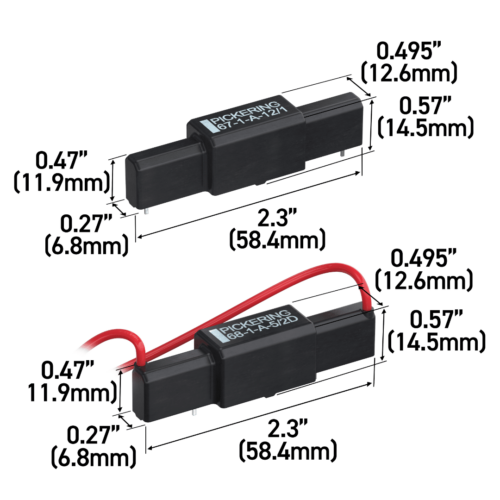

| PEL Depth (mm) | 12.6 |
| PEL Width (mm) | 58.4 |
| PEL Height (mm) | 14.5 |
| PEL Series | Series 68 |
Quality Assurance
Pickering reed relays are subjected to continuous inspection during the manufacturing process and after a strenuous thermal cycling routine, every reed relay is 100% tested for all operating parameters.
Pickering are certified to ISO 9001:2015 and audited by the British Standards Institution.
Free Evaluation Samples
Did you know Pickering provide free working samples to help you evaluate our high-quality reed relays without reducing your R&D budget? Request your free samples today.
