86-1-A-12/8D

$31.14 Excl. Vat

4 in stock

Quantity discounts
1-24 25-99 100-249 250+
$31.14 $28.03 $26.47 $24.91



Click to see product specifications

Please note -  Prices above excl. tax and duties
For availability, lead time and delivery options please request a quote. For larger quantities request a quote below or fill out this form

Back to the Reed Relay Selector
SKU: 86-1-A-12/8D Category:

Description

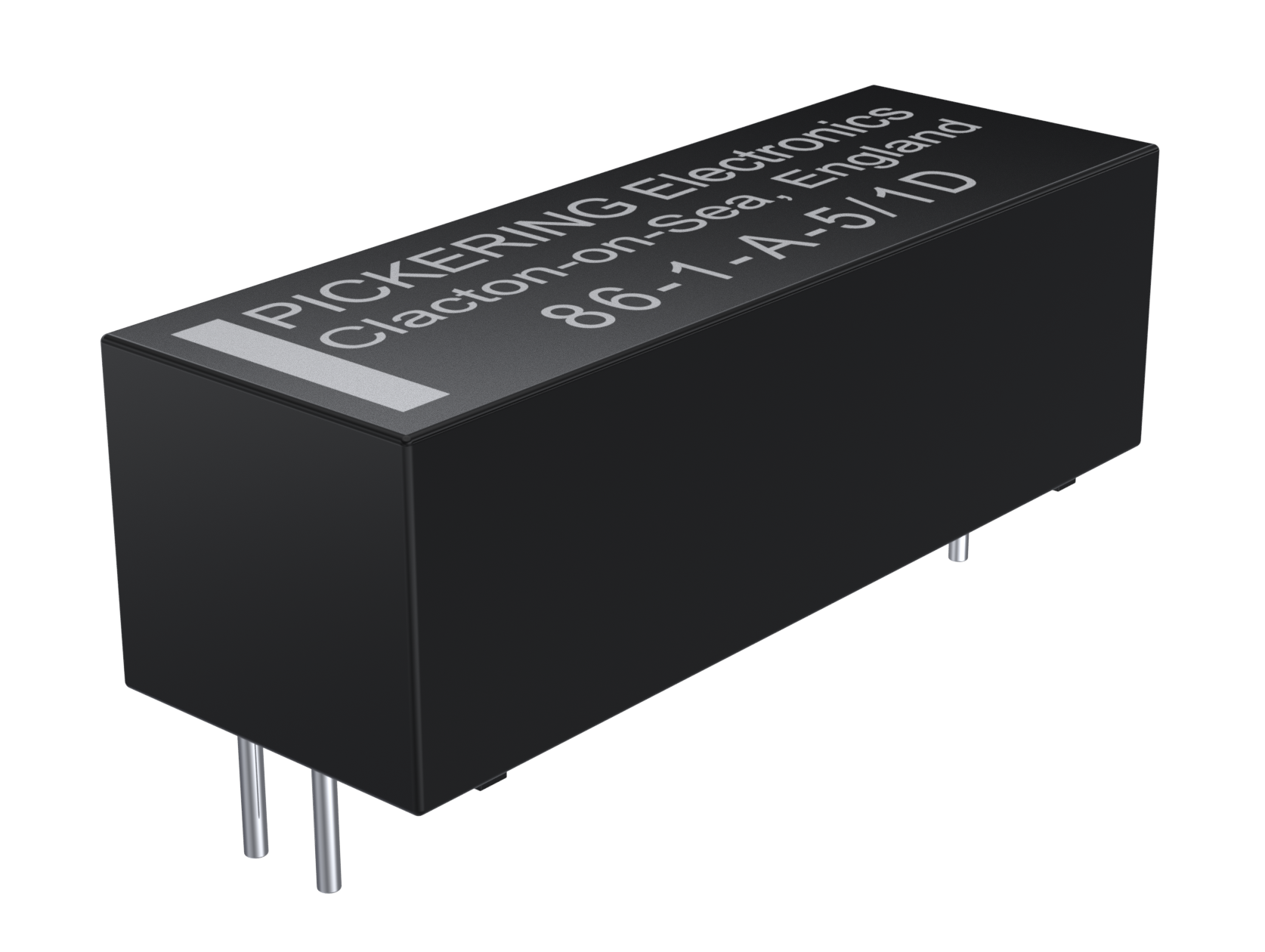

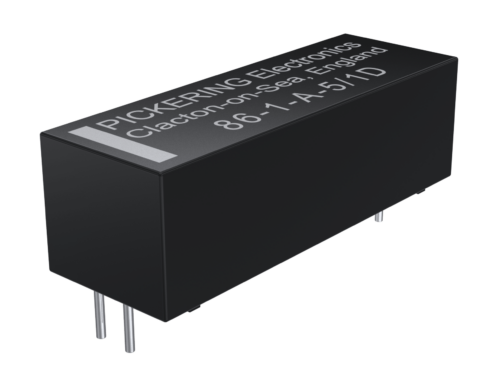

Pickering Series 86

  • High Sensitivity Reed Relays
  • Dry and mercury wetted
  • 1 Form A
  • 12 V Coil

To learn more about this series click here

Many benefits compared to industry-standard relays. Learn more here

Custom options are available. Learn more here

Download Data Sheet PDF

Additional information

Dimensions 55663927 × 556629 mm
PEL Switching Current (Amps)

2

PEL Coil Voltage

12V

PEL Depth (mm)

9.9

PEL Width (mm)

29

PEL Height (mm)

9.4

PEL Series

Series 86

Series

Series 86

PEL Switching Voltage

500

PEL Standoff Voltage

550

Contact Configuration

1 Form A – SPST N.O.

PEL Switch Type

Std Mercury Reed

Switching Power (Watts)

50

Coil Resistance

1000 Ω

PEL Coil Resistance

1000 Ω

PEL Switching Power (Watts)

50

Diode

Yes

PEL Contact Configuration

1 Form A – SPST N.O.

Coil Voltage

12V

PEL Diode

Yes

Switching Current (Amps)

2

Switching Voltage

500

Standoff Voltage

550

Depth (mm)

9.9

Width (mm)

29

Height (mm)

9.4
