86-1-A-5/8D

$0.00 Excl. Vat

2 in stock

Quantity discounts
1-24 25-99 100-249 250+
$0.00 $0.00 $0.00 $0.00



Click to see product specifications

Please note -  Prices above excl. tax and duties
For availability, lead time and delivery options please request a quote. For larger quantities request a quote below or fill out this form

Back to the Reed Relay Selector
SKU: 86-1-A-5/8D Category:

Description

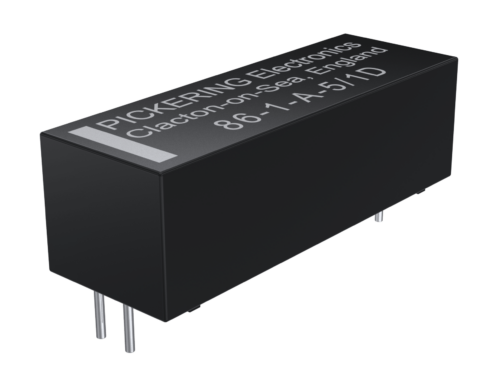

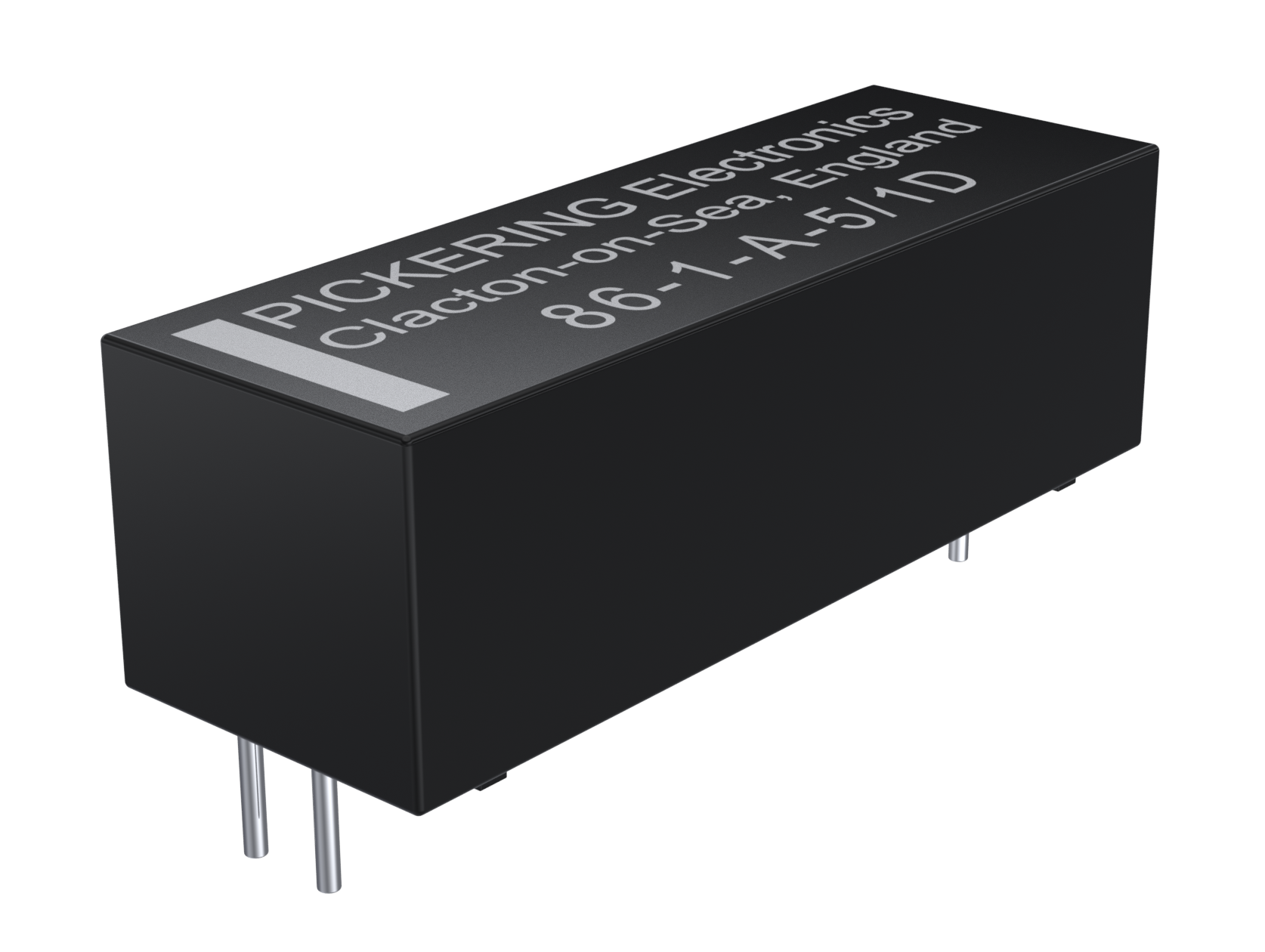

Pickering Series 86

  • High Sensitivity Reed Relays
  • Dry and mercury wetted
  • 1 Form A
  • 5 V Coil

To learn more about this series click here

Many benefits compared to industry-standard relays. Learn more here

Custom options are available. Learn more here

Download Data Sheet PDF

Additional information

Dimensions 55663927 × 556629 mm
PEL Switching Current (Amps)

2

PEL Coil Voltage

5V

PEL Depth (mm)

13.2

PEL Width (mm)

29

PEL Height (mm)

9.4

Series

Series 86

PEL Series

Series 86

PEL Switching Voltage

500

Contact Configuration

1 Form A – SPST N.O.

PEL Standoff Voltage

550

Switching Power (Watts)

50

Coil Resistance

350 Ω

PEL Coil Resistance

350 Ω

PEL Switching Power (Watts)

50

Diode

Yes

PEL Contact Configuration

1 Form A – SPST N.O.

Coil Voltage

5V

PEL Diode

Yes

Switching Current (Amps)

2

Switching Voltage

500

Standoff Voltage

550

Depth (mm)

13.2

Width (mm)

29

Height (mm)

9.4

PEL Switch Type

Std Mercury Reed
