88-1-B-24/1

$27.31




Click here to see relay specifications

Please note -  Prices above excl. tax and duties
For availability, lead time and delivery options please request a quote.

For larger quantities and volume pricing please fill out this simple request a quote form

Back to the Reed Relay Selector
Quantity discounts
1-24 25-99 100-249 250+
$27.31 $24.58 $23.21 $27.31
SKU: 88-1-B-24/1 Category:

Additional information

Standoff Voltage

550

Depth (mm)

13.2

Switching Power (Watts)

50

Switching Voltage

500

Switching Current (Amps)

2

Coil Resistance

1750 Ω

Contact Configuration

1 Form B – SPST N.C.

Width (mm)

29

Diode

No

Coil Voltage

24V

Switch Type

Std Mercury Reed

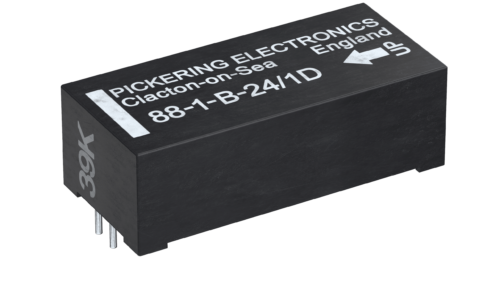

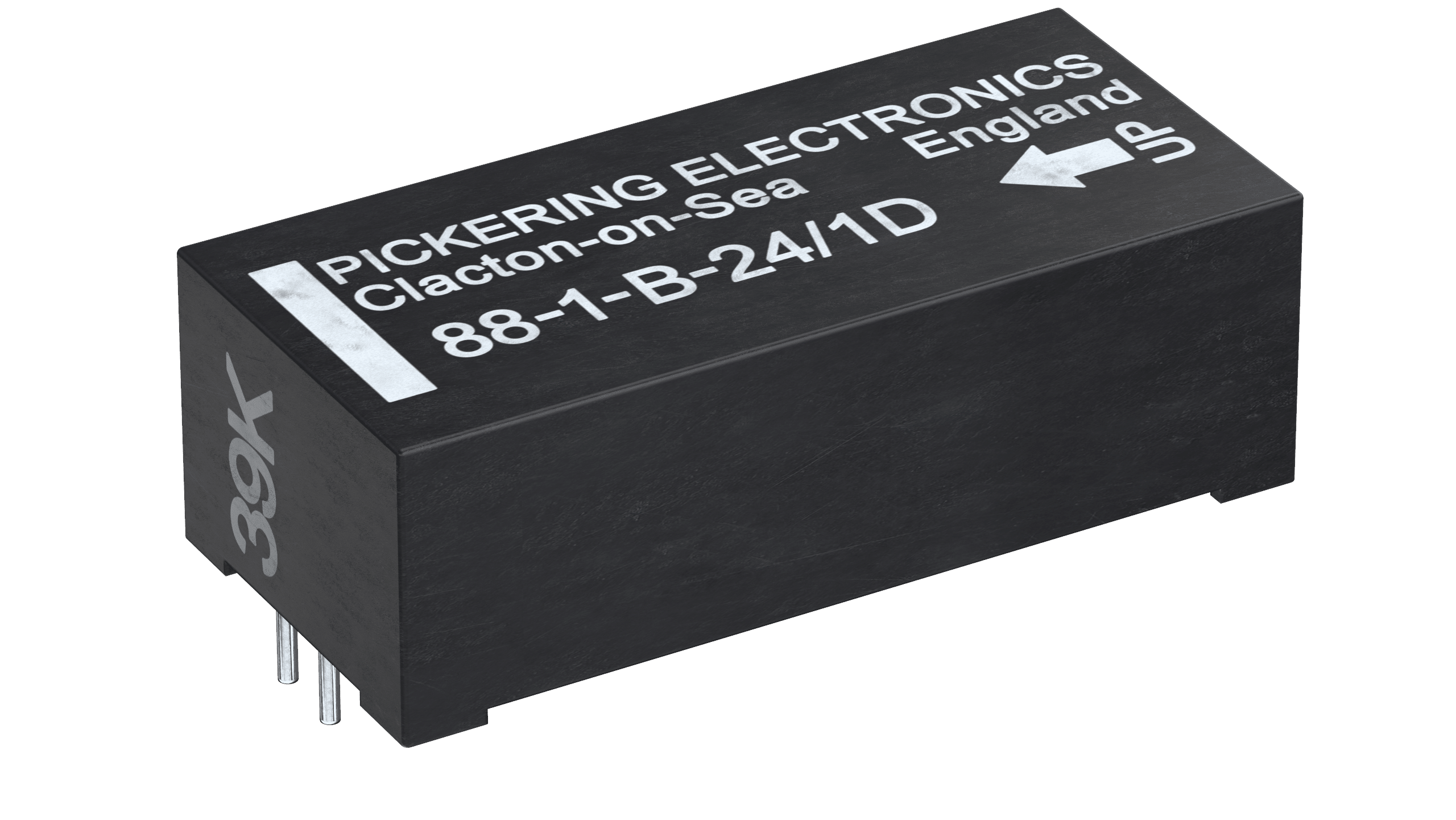

Description

Pickering Series 88

  • General Purpose Reed Relays
  • Dry and mercury wetted



Download Data Sheet PDF
