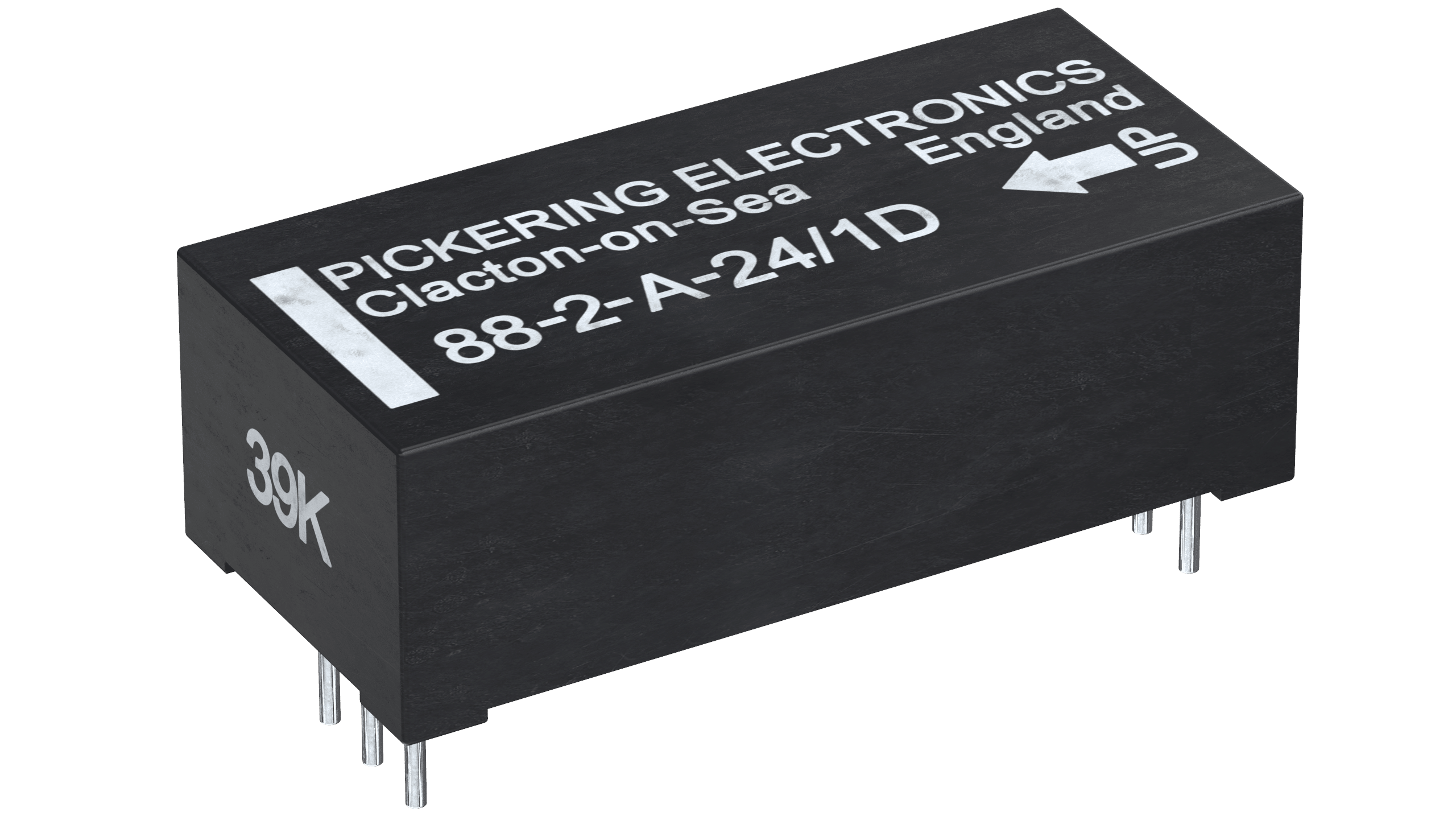

88-2-A-5/1D
$56.53 Excl. Vat, Tax and Duties
13-16 weeks for additional manufactured stock
Availability: 10 in stock
| 1-24 | 25-99 | 100-249 | 250+ |
| $56.53 | $50.88 | $48.05 | $45.22 |
Please note - Prices above excl. tax and duties
For availability, lead time and delivery options please request a quote. For larger quantities fill out this form
< Back to the Reed Relay SelectorPickering Series 89
- General Purpose Reed Relays
- Dry and mercury wetted
- 2 Form A
- 5 V Coil
- Designed and manufactured by Pickering in the UK and Czech Republic (EU)
To learn more about this series click here
Many benefits compared to industry-standard relays. Learn more here
Custom options are available. Learn more here
| Dimensions | 55663927 × 556629 mm |
|---|---|
| PEL Contact Configuration | 2 Form A – DPST N.O. |
| PEL Switching Current (Amps) | 2 |
| PEL Switching Power (Watts) | 50 |
| PEL Switching Voltage | 500 |
| PEL Standoff Voltage | 550 |
| PEL Coil Voltage | 5V |
| PEL Coil Resistance | 90 Ω |
| PEL Diode | Yes |
| PEL Depth (mm) | 13.2 |
| PEL Width (mm) | 29 |
| PEL Height (mm) | 9.4 |
| PEL Series | Series 88 |
| Series | Series 88 |
| Contact Configuration | 2 Form A – DPST N.O. |
| Switching Power (Watts) | 50 |
| PEL Switch Type | Std Mercury Reed |
| Coil Resistance | 90 Ω |
| Diode | Yes |
| Coil Voltage | 5V |
| Switching Current (Amps) | 2 |
| Switching Voltage | 500 |
| Standoff Voltage | 550 |
| Depth (mm) | 13.2 |
| Width (mm) | 29 |
| Height (mm) | 9.4 |
Quality Assurance
Pickering reed relays are subjected to continuous inspection during the manufacturing process and after a strenuous thermal cycling routine, every reed relay is 100% tested for all operating parameters.
Pickering are certified to ISO 9001:2015 and audited by the British Standards Institution.
