89-1-A-24/1

$31.19 Excl. Vat, Tax and Duties

13-16 weeks for additional manufactured stock

Availability: 3 in stock

Quantity discounts
1-24 25-99 100-249 250+
$31.19 $28.07 $26.51 $24.95
Compare

Please note -  Prices above excl. tax and duties

For availability, lead time and delivery options please request a quote. For larger quantities fill out this form

Check Distributor Inventory

< Back to the Reed Relay Selector

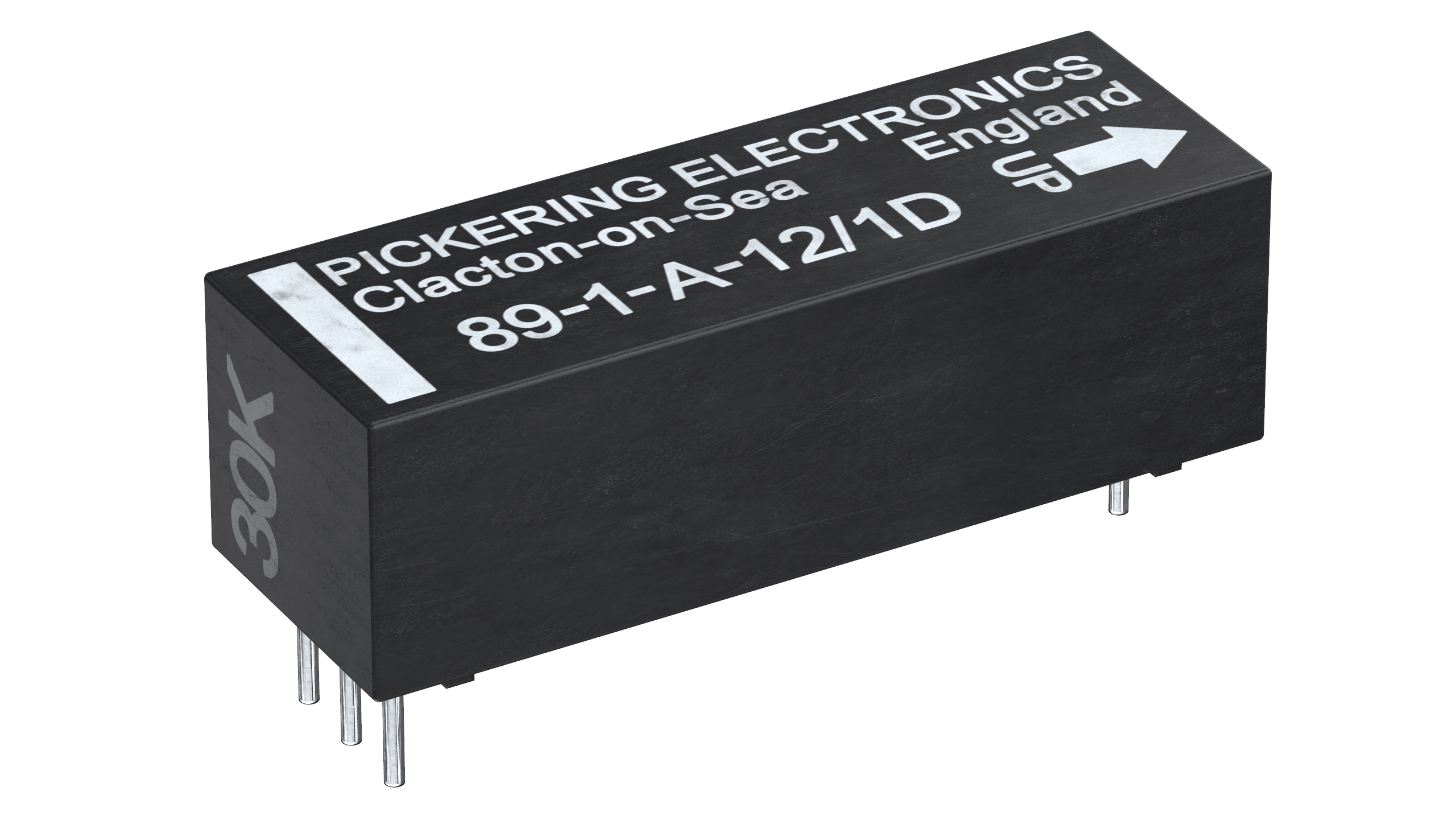

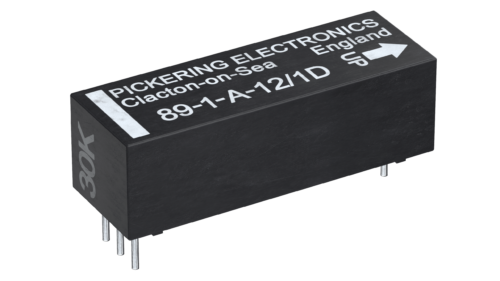

Pickering Series 89

  • General Purpose Reed Relays
  • Dry and mercury wetted
  • 1 Form A
  • 24 V Coil
  • Designed and manufactured by Pickering in the UK and Czech Republic (EU)

To learn more about this series click here

Many benefits compared to industry-standard relays. Learn more here

Custom options are available. Learn more here

Download Data Sheet PDF

Dimensions 55663927 × 556629 mm
PEL Contact Configuration

1 Form A – SPST N.O.

PEL Switching Current (Amps)

2

PEL Switching Power (Watts)

50

PEL Switching Voltage

500

PEL Standoff Voltage

550

PEL Coil Voltage

24V

PEL Coil Resistance

2000 Ω

PEL Diode

No

PEL Depth (mm)

9.9

PEL Width (mm)

29

PEL Height (mm)

9.4

Series

Series 89

PEL Series

Series 89

Contact Configuration

1 Form A – SPST N.O.

Switching Power (Watts)

50

PEL Switch Type

Std Mercury Reed

Coil Resistance

2000 Ω

Diode

No

Coil Voltage

24V

Switching Current (Amps)

2

Switching Voltage

500

Standoff Voltage

550

Depth (mm)

9.9

Width (mm)

29

Height (mm)

9.4
