89-2-A-5/1

SKU: 89-1-B-24/1 Category:

Description

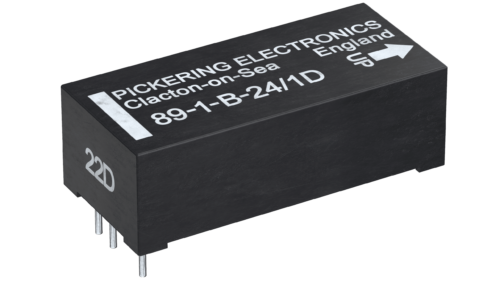

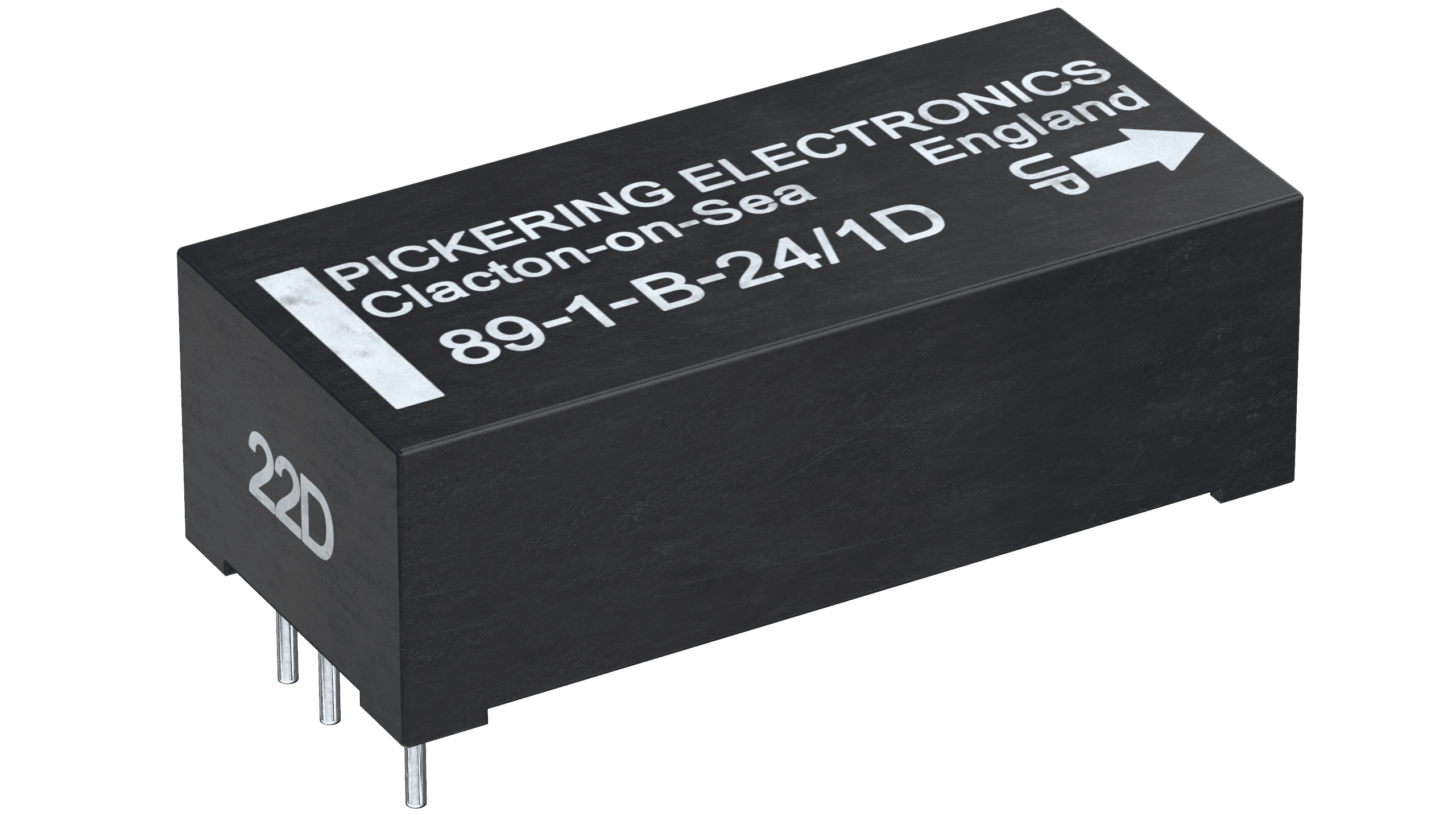

Pickering Series 89

  • General Purpose Reed Relays
  • Dry and mercury wetted



Download Data Sheet PDF

Additional information

Relay Specs
PEL Contact Configuration

1 Form A – SPST N.O.

PEL Switching Current (Amps)

2

PEL Switching Power (Watts)

50

PEL Switching Voltage

200

PEL Standoff Voltage

550

PEL Coil Voltage

5V

PEL Coil Resistance

1750 Ω

PEL Switch Type

Std Mercury Reed

PEL Diode

No

PEL Depth (mm)

13.2

PEL Width (mm)

29

PEL Height (mm)

9.4

More
Series

Series 89

PEL Series

Series 89

Contact Configuration

1 Form A – SPST N.O.

Switching Power (Watts)

50

Coil Resistance

1750 Ω

Diode

No

Coil Voltage

5V

Switching Current (Amps)

2

Switching Voltage

200

Standoff Voltage

550

Depth (mm)

13.2

Width (mm)

29

Height (mm)

9.4
