108-1-A-12/1D
$9.83 Excl. Vat, Tax and Duties
4-6 weeks for additional manufactured stock
Availability: 4 in stock
Discount per quantity
| Quantity | 1 - 24 | 25 - 99 | 100 - 249 | 250+ |
|---|---|---|---|---|
| Price | $9.83 | $8.85 | $8.36 | $7.86 |
Please note - Prices above excl. tax and duties
For availability, lead time and delivery options please request a quote. For larger quantities fill out this form

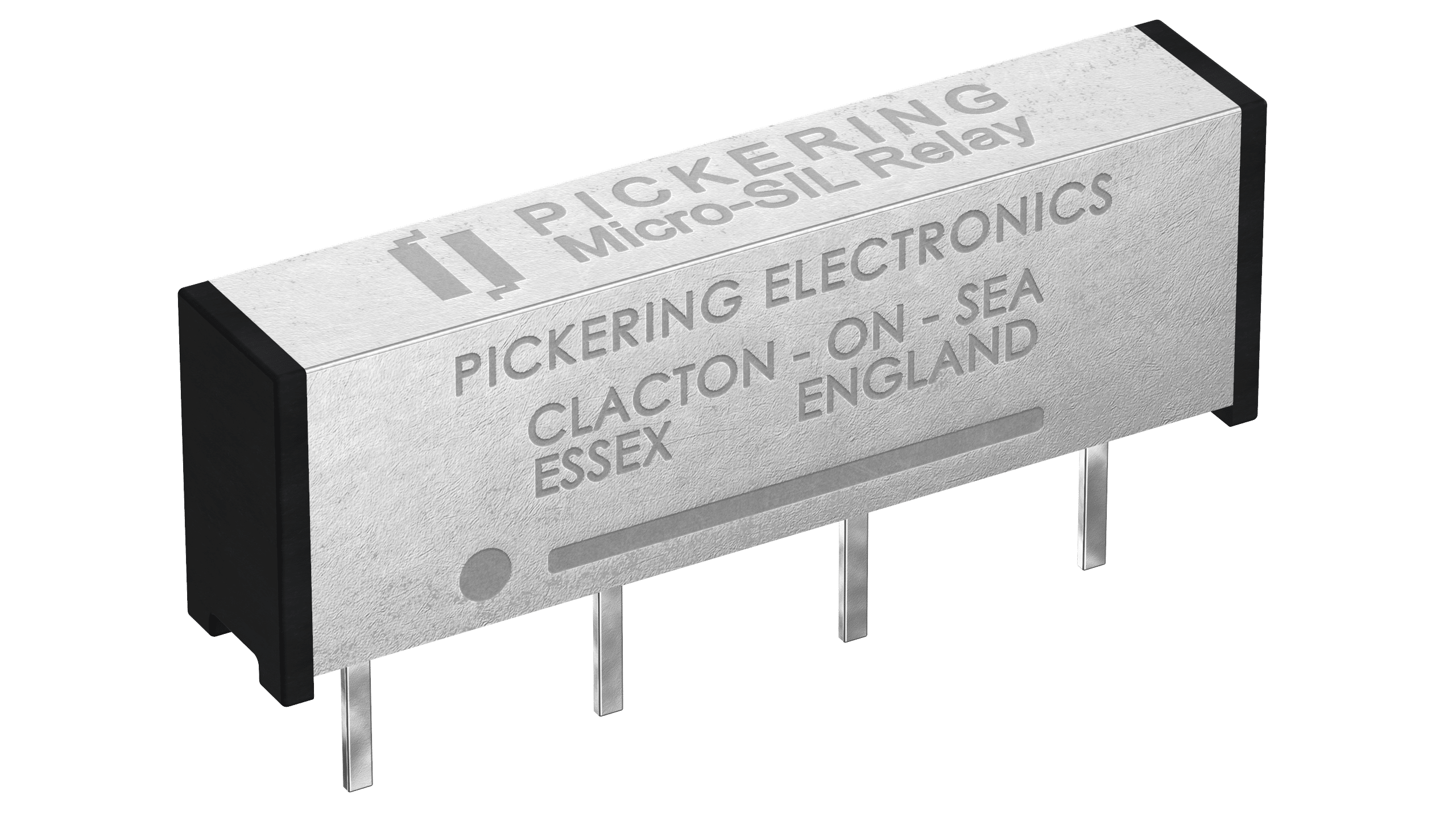

Request a Free Sample < Back to the Reed Relay SelectorPickering Series 108
- Micro-SIL Reed Relays
- For stacking on 0.15 x 0.8 inches pitch
- 1 Form A
- 12 V Coil
- Designed and manufactured by Pickering in the UK and Czech Republic (EU)
To learn more about this series click here
Many benefits compared to industry-standard relays. Learn more here
Custom options are available. Learn more here
| Dimensions | 55663927 × 556629 mm |
|---|---|
| Series | Series 108 |
| Contact Configuration | 1 Form A – SPST N.O. |
| Switching Current (Amps) | 1 |
| Switching Power (Watts) | 20 |
| Switching Voltage | 200 |
| Standoff Voltage | 240 |
| Coil Voltage | 12V |
| Coil Resistance | 1000 Ω |
| Diode | Yes |
| Depth (mm) | 3.7 |
| Width (mm) | 20 |
| Height (mm) | 6.6 |
| PEL Series | Series 108 |
| PEL Contact Configuration | 1 Form A – SPST N.O. |
| PEL Coil Voltage | 12V |
| PEL Switching Current (Amps) | 1 |
| PEL Switching Power (Watts) | 20 |
| PEL Coil Resistance | 1000 Ω |
| PEL Standoff Voltage | 240 |
| PEL Switch Type | General Dry Reed |
| PEL Switching Voltage | 200 |
| PEL Height (mm) | 6.6 |
| PEL Width (mm) | 20 |
| PEL Depth (mm) | 3.7 |
| PEL Diode | Yes |
Other Recommended Relays
Quality Assurance
Pickering reed relays are subjected to continuous inspection during the manufacturing process and after a strenuous thermal cycling routine, every reed relay is 100% tested for all operating parameters.
Pickering are certified to ISO 9001:2015 and audited by the British Standards Institution.
