67-1-C-5/5

$94.19 Excl. Vat, Tax and Duties

13-16 weeks for manufactured stock

No stock available - made to order. Please add to request for quote list

Compare

Please note -  Prices above excl. tax and duties

For availability, lead time and delivery options please request a quote. For larger quantities fill out this form

Check Distributor Inventory

< Back to the Reed Relay Selector

Pickering Series 67

  • High Voltage Dry Reed Relays
  • For up to 5kV
  • 1 Form C
  • 5 V Coil
  • Designed and manufactured by Pickering in the UK and Czech Republic (EU)

To learn more about this series click here

Many benefits compared to industry-standard relays. Learn more here

Custom options are available. Learn more here

Download Data Sheet PDF

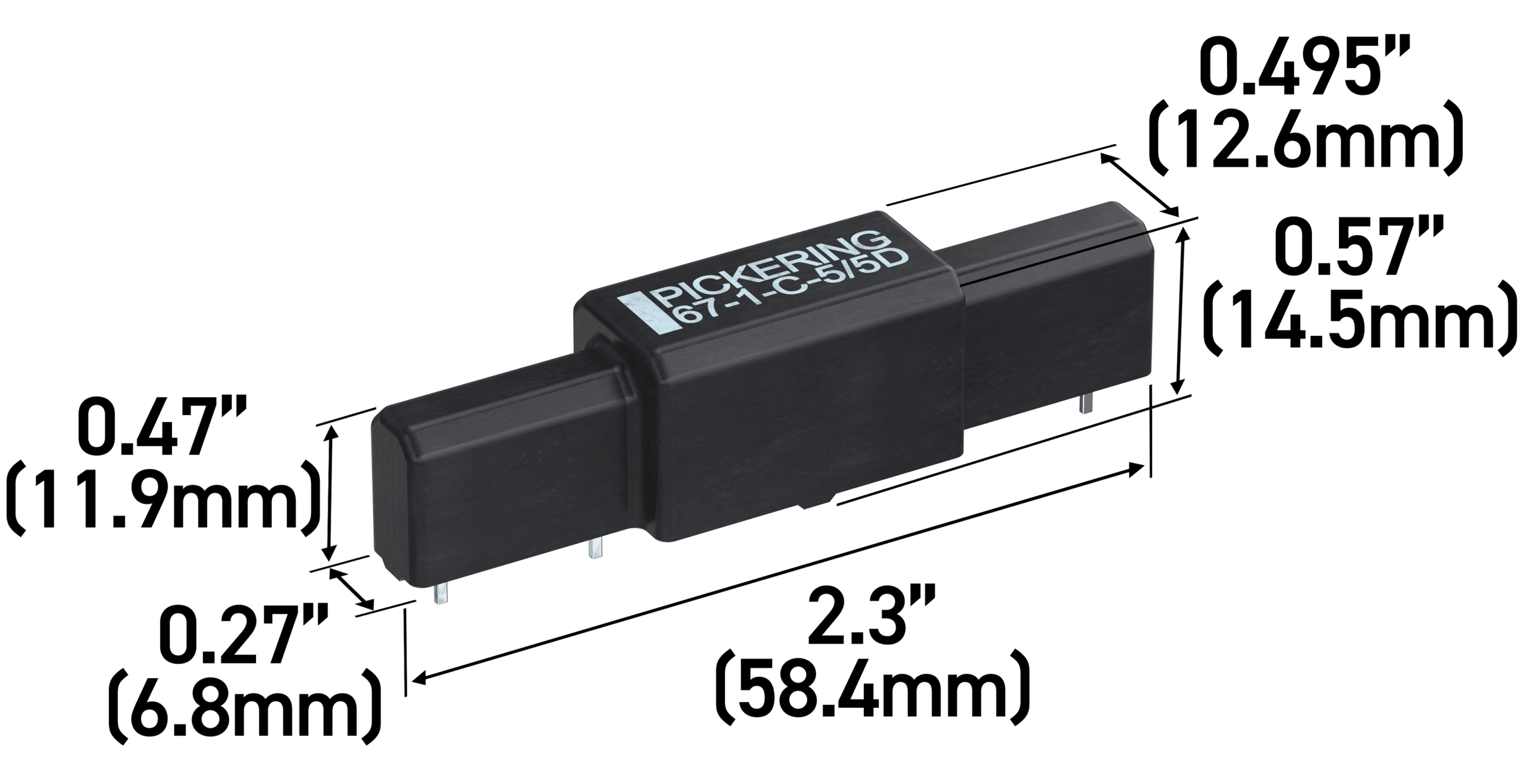

Dimensions 55663927 × 556629 mm
Series

Series 67

Contact Configuration

1 Form C

Switching Current (Amps)

3

Switching Power (Watts)

50

Switching Voltage

2500

Standoff Voltage

5000

Coil Voltage

5V

Coil Resistance

40 Ω

Diode

No

Depth (mm)

12.6

Width (mm)

12.6

Height (mm)

14.5

PEL Series

Series 67

PEL Coil Voltage

5V

PEL Switching Current (Amps)

3

PEL Switching Voltage

2500

PEL Standoff Voltage

5000

PEL Coil Resistance

40 Ω

PEL Contact Configuration

1 Form C – SPDT Changeover

PEL Switching Power (Watts)

100

PEL Diode

Yes, No

PEL Height (mm)

14.5

PEL Width (mm)

12.6

PEL Depth (mm)

12.6

PEL Switch Type

5KV Standoff
