  • SIL Series 113

SIL Series 113

by Pickering / Saturday, 17 December 2016 / Published in Product News

Range includes the smallest changeover reed relays available

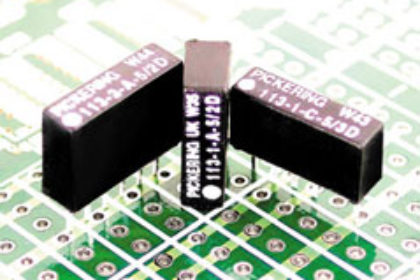

Pickering Electronics are pleased to announce a new range of Single-in-Line (SIL) reed relays. The Series 113 requires a board area of only 0.15 inches (3.8mm.) by 0.5 inches (12.7mm.).

As well as the more usual Single pole energize to make type (1 Form A), the range also includes two pole energize to make (2 Form A) and single pole changeover (1 Form C) versions, the smallest currently available.

These relays require less than one half the board area of the more usual 0.2 x 0.8 inch devices, making them the ideal choice for ATE or other high density applications.
