High Potential Testing: Achieve Accurate, Reliable Dielectric Testing with Reed Relays

Ensure safety, reliability, and performance in high-voltage testing applications

Hipot testing verifies the effectiveness of insulation in electrical products and systems. It includes two related methods: dielectric breakdown testing, which raises voltage until failure to establish true limits, and dielectric withstand (Hipot) testing, which applies a defined overvoltage and confirms leakage remains within safe limits. Both require accurate low-current measurement while applying high voltage, and both are influenced by real-world insulation choices and ageing factors such as temperature, humidity, dust, chemicals, flexing and thermal cycling.

High-voltage reed relays are a natural fit for this environment. Hermetically sealed contacts in an inert atmosphere or near-vacuum avoid the oxidation and contamination issues that affect open-air electromechanical relays. Compared with solid-state switches, reed relays offer very low leakage thanks to high insulation resistance and careful pin spacing, along with stable contact resistance and fast operate times that support repeatable test results.

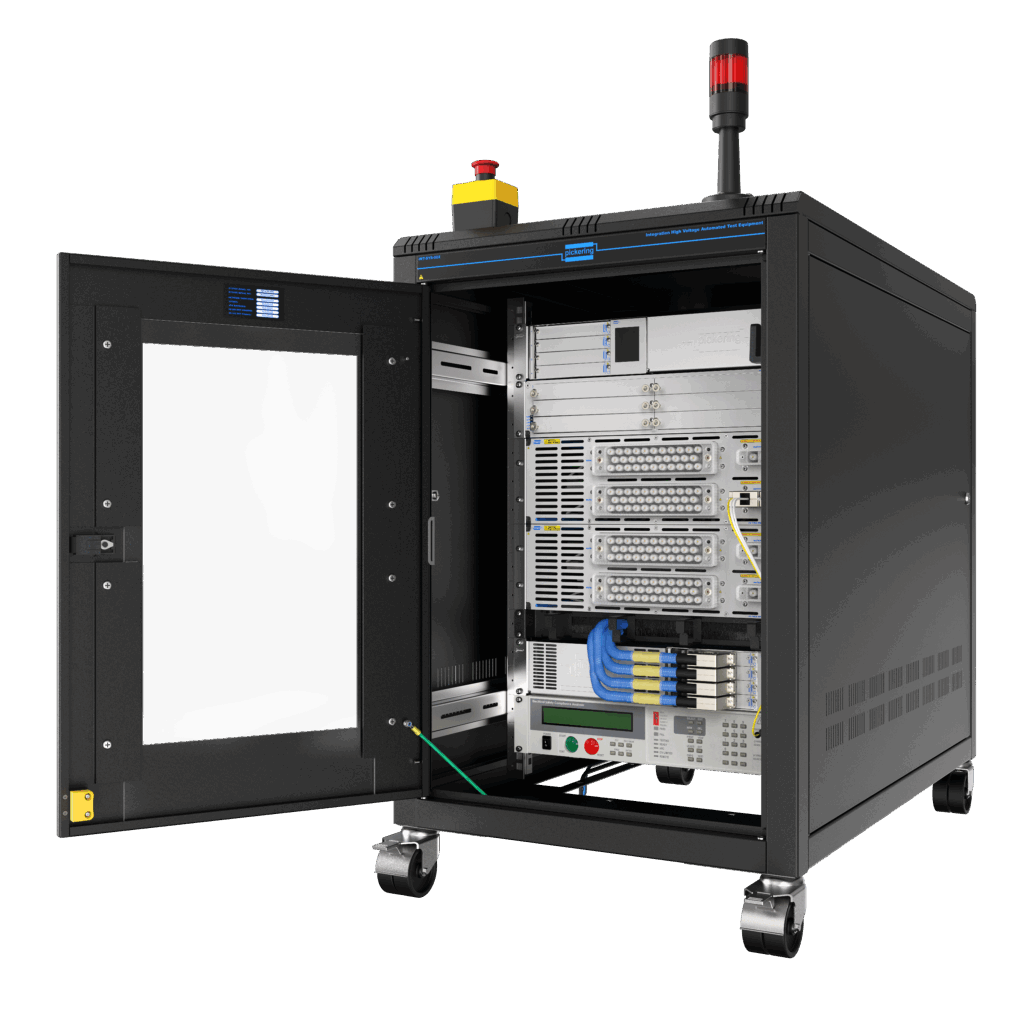

Pickering's in-house Hipot tester

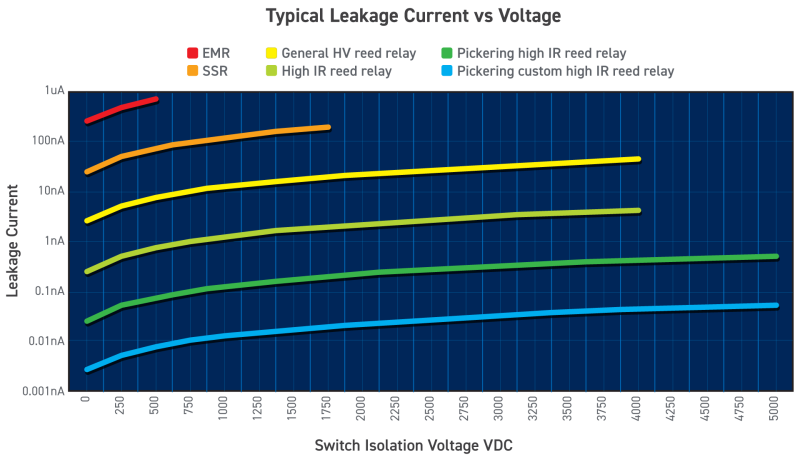

As the graph below shows, leakage currents in electromechanical relays (EMRs) and solid-state relays (SSRs) rise quickly as voltage increases, often reaching the microamp range. By contrast, reed relays — and particularly Pickering’s high insulation resistance designs — maintain leakage in the sub-nanoamp region even at kilovolt levels. This stability is critical for producing reliable Hipot test results across dielectric withstand and breakdown methods.
Typical-Leakage-Current-vs-Voltage

Finding this guide interesting?

Download the full guide now to learn more about utilizing reed relays in Hipot Testing applications.

What you’ll learn in this guide:

  • High Potential Testing
  • Insulation: Its Role & Testing
  • Why High Voltage Reed Relays Outperform EMRs and SSRs
  • Reed Relay Terminology
  • Recommended Products for Demanding Hipot Testers
  • Why Pickering Electronics for Reed Relays?
Hipot

Why read the guide?

This application guide not only explains the theory behind dielectric testing but also gives you practical insight into how the right reed relay can improve test accuracy, reduce leakage, and deliver long-term reliability. Whether you’re working in semiconductor test, EV charging, solar, or medical electronics, this resource will help you design safer, more effective systems.

The information you provide will only be used by Pickering to enable us to keep you informed of products developments. We do not pass any information to other organizations. You may unsubscribe from these communications at anytime. For information on how to unsubscribe, as well as our privacy practices and commitment to protecting your privacy, check out our Privacy Policy.

Series 219 High Voltage SMD 3kV

All contact configurations are offered with three coil voltages, 3V, 5V, or 12V. Switching is up to 0.7A and 10W, while the operating temperature range spans from -40°C to +105°C.

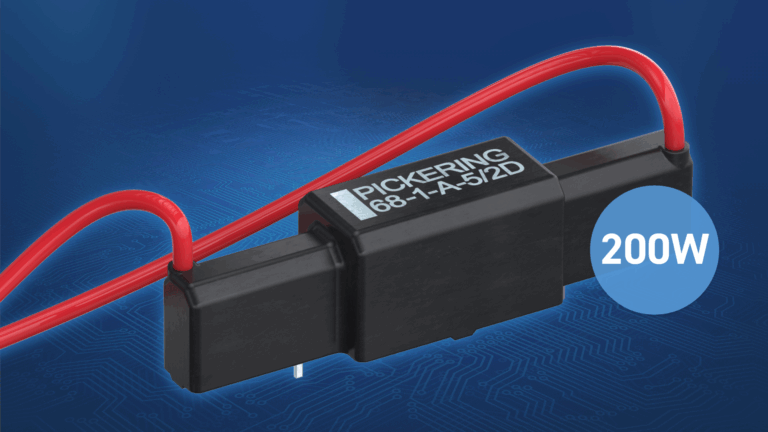

Series 67 & 68 SIL up to 10 kV

Option of PCB & flying lead connections in Form A and Form C Changeover. Up to 10 kV, 7.5 kV switching. High power 200 W switch available. 5, 12 or 24 V coils.

Series 104 Mini SIL up to 5kV

Small high voltage reed relays in Form A and Form B. Up to 5000 V stand-off, 1500 V switching. 5, 12 or 24 V coils. Suitable for transformer testing. Optional electrostatic shield.

Series 119 Mini SIL up to 3 kV

Very small isolation reed relays in Form A and Form B configurations. Up to 3000 V stand-off, 1000 V switching. 3, 5 or 12 V coils. Suitable for cable testers.

Series 100HV SIL for up to 3kV

HV + high coil resistance reed relays in Form A and Form B. 3000 V stand-off, 1000 V switching. 5, 12 or 24 V coils. Up to 6800 Ohms coil resistance.

Series 131 Mini SIL up to 1.5 kV

The smallest high voltage relays available. 1 Form A. Up to 1500 V stand-off, 1000 V switching. 3, 5, or 12 V coils. Suitable for mixed signal semiconductor testers.

Series 60 & 65 up to 15kV Standoff PCB

This range has switching voltages up to 12.5 kV and minimum standoff voltages up to 15 kV. Maximum switch current is 3 A (at up to 50 W) and maximum carry current is up to 3.5 A.

Reed Relay Series 62 and 63

Series 62 & 63 up to 20kV Standoff PCB

This range has switching voltages up to 12.5 kV and minimum standoff voltages up to 20 kV. Maximum switch current is 3 A (at up to 50 W) and maximum carry current is 3.5 A.

Series 144 – up to 3kV

2 A switching at up to 60 W, or 1 A switching up to 80 W, with a continuous carry current of up to 3 Amps. High-voltage capability, with a switching voltage of 1000VDC up to 10W and up to 3kV standoff. 5 , 12 or 24 V coils.

series 600 20kV customizable

New Series 600 up to 20kV Highly Customizable

This range has switching voltages up to 12.5kV and standoff voltages up to 20kV. Switch current is 3A (at up to 200W). Highly customizable modular design enables tailored case sizes, connection types (turrets, flying leads, PCB pins), and potting materials. 1 Form A, 1 Form B, & 1 Form C (Changeover). Electrostatic shielding options available.
