  • NEW 119 HIGH VOLTAGE RELAYS

NEW 119 HIGH VOLTAGE RELAYS

by Pickering / Saturday, 17 December 2016 / Published in Product News

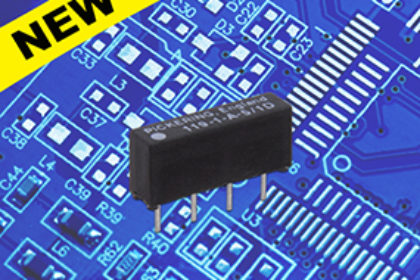

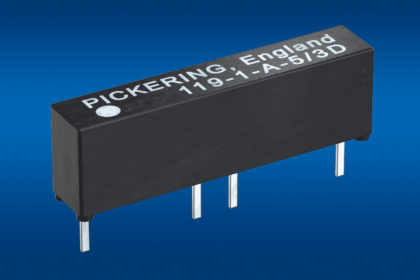

New Series 119 Micro-SIL Relays for up to 3kV

• Sputtered Ruthenium vacuum switches
• 1 Form A at 1, 2, or 3kV plus 2 Form A at 1kV
• Plastic package with internal mu-metal magnetic screen
• Ideal for Mixed Signal ATE, Cable Test or other high voltage applications where space is at a premium

Pickering Electronics are pleased to announce the addition of the Series 119 high voltage Micro-SIL relay to our range.

This is the smallest high voltage reed relay currently available and features sputtered ruthenium switches which makes them suitable for low levels as well as high voltage stand-off. The single pole 1kV version is pin and package compatible with the popular Series 109P so it may be possible to increase the functionality of some existing designs.
