106-1-C-5/3
$13.72 Excl. Vat, Tax and Duties
7-9 weeks for additional manufactured stock
Availability: 2 in stock
| 1-24 | 25-99 | 100-249 | 250+ |
| $13.72 | $12.35 | $11.66 | $10.98 |
Please note - Prices above excl. tax and duties
For availability, lead time and delivery options please request a quote. For larger quantities fill out this form

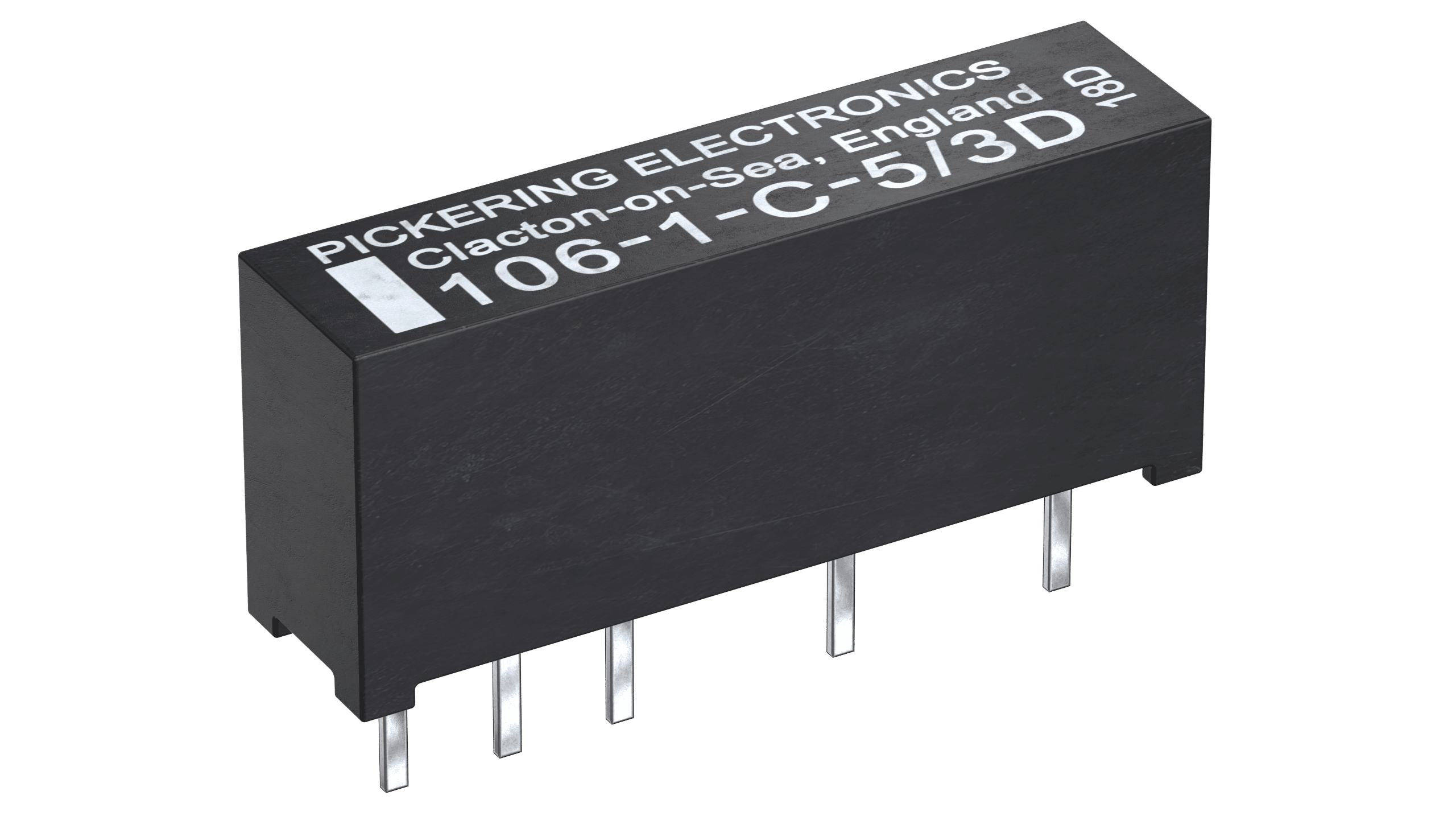

< Back to the Reed Relay SelectorPickering Series 106
- Single-In-Line Reed Relays
- Stacks on a 0.2 x 0.8 inch pitch
- 1 Form C
- 5 V Coil
- Designed and manufactured by Pickering in the UK and Czech Republic (EU)
To learn more about this series click here
Many benefits compared to industry-standard relays. Learn more here
Custom options are available. Learn more here
| Dimensions | 55663927 × 556629 mm |
|---|---|
| PEL Switching Current (Amps) | 0.25 |
| PEL Switching Power (Watts) | 3 |
| PEL Switching Voltage | 200 |
| PEL Standoff Voltage | 200 |
| PEL Coil Voltage | 5V |
| PEL Coil Resistance | 500 Ω |
| PEL Diode | Yes |
| PEL Depth (mm) | 5.08 |
| PEL Width (mm) | 19.4 |
| PEL Height (mm) | 8.4 |
| Coil Resistance | 500 Ω |
| PEL Series | Series 106 |
| PEL Contact Configuration | 1 Form C – SPDT Changeover |
| Coil Voltage | 5V |
| Series | Series 106 |
| Contact Configuration | 1 Form C – SPDT Changeover |
| Switching Current (Amps) | 0.25 |
| Switching Power (Watts) | 3 |
| Switching Voltage | 200 |
| Diode | No |
| Depth (mm) | 5.08 |
| Width (mm) | 19.4 |
| Height (mm) | 8.4 |
| Standoff Voltage | 200 |
| PEL Switch Type | Low Level Dry Reed |
Other Recommended Relays
Quality Assurance
Pickering reed relays are subjected to continuous inspection during the manufacturing process and after a strenuous thermal cycling routine, every reed relay is 100% tested for all operating parameters.
Pickering are certified to ISO 9001:2015 and audited by the British Standards Institution.
