New Series 600: Customizable High Voltage Reed Relays
Up to 20kV Standoff, 12.5kV Switching, 200W
Tailored Design for Demanding High Voltage Applications

• Available with 5V, 12V or 24V coils, with optional diode or Zener + diode for back EMF suppression
• 1 Form A (NO), 1 Form B (NC), and 1 Form C (Changeover) contact configurations
• Vacuum-sealed instrumentation-grade reed switches ensure high reliability and long life
• Insulation resistance greater than 10¹³Ω for exceptional low leakage performance
• Mu-metal magnetic screening and electrostatic shielding options available for precision applications

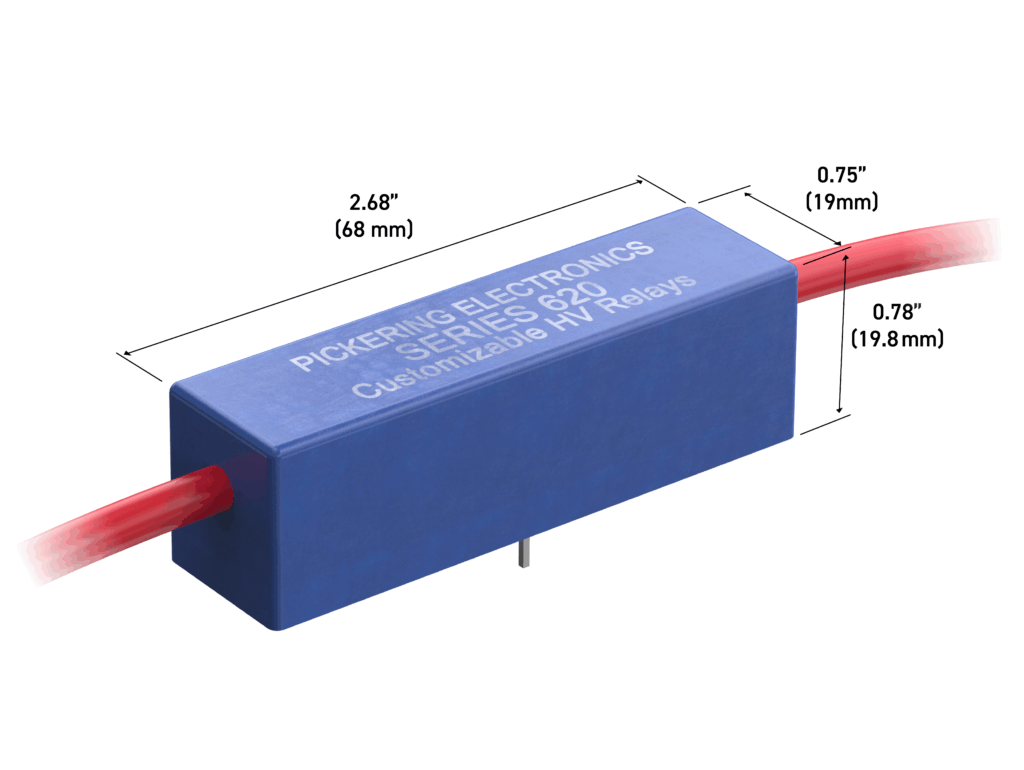

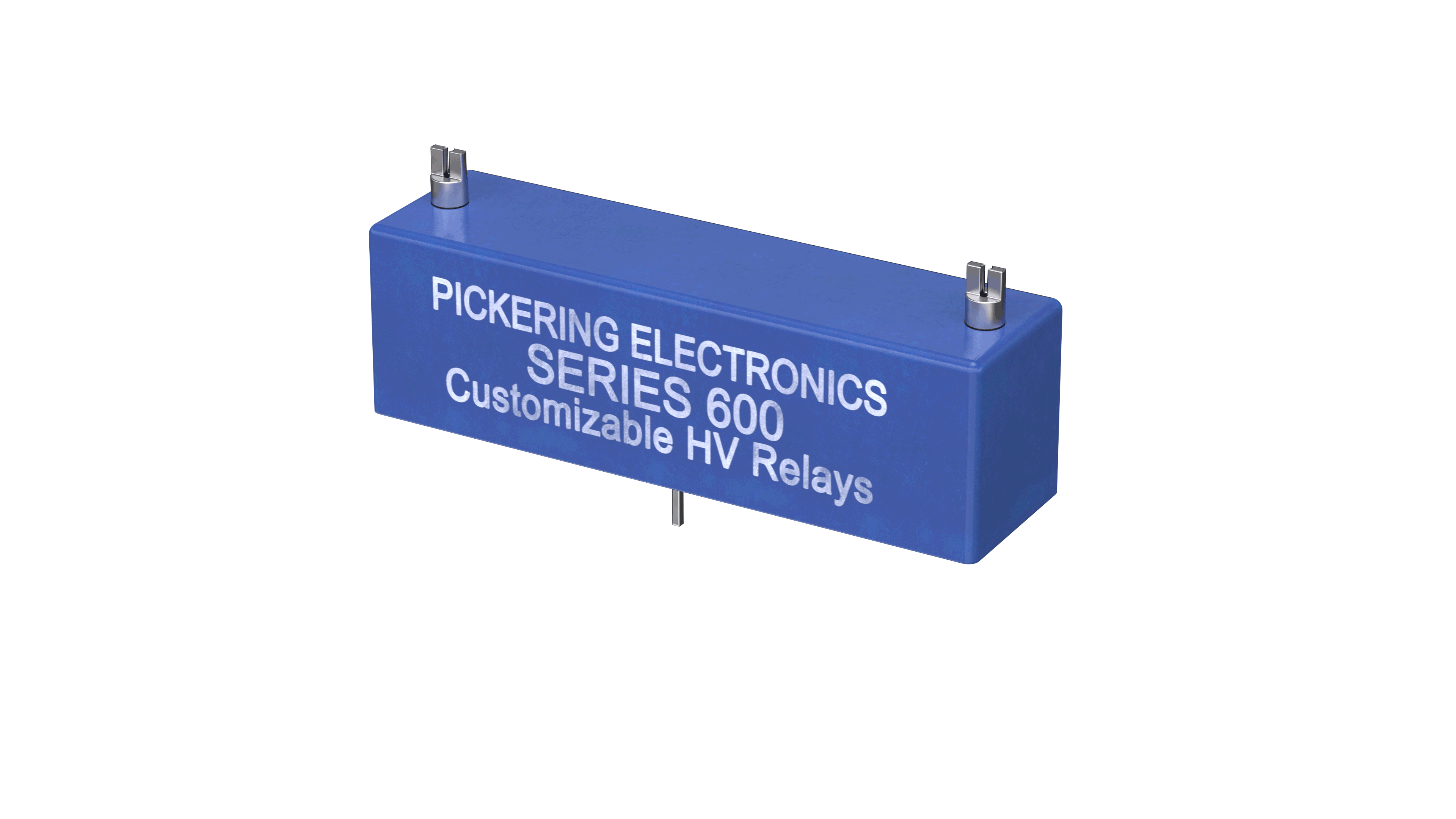

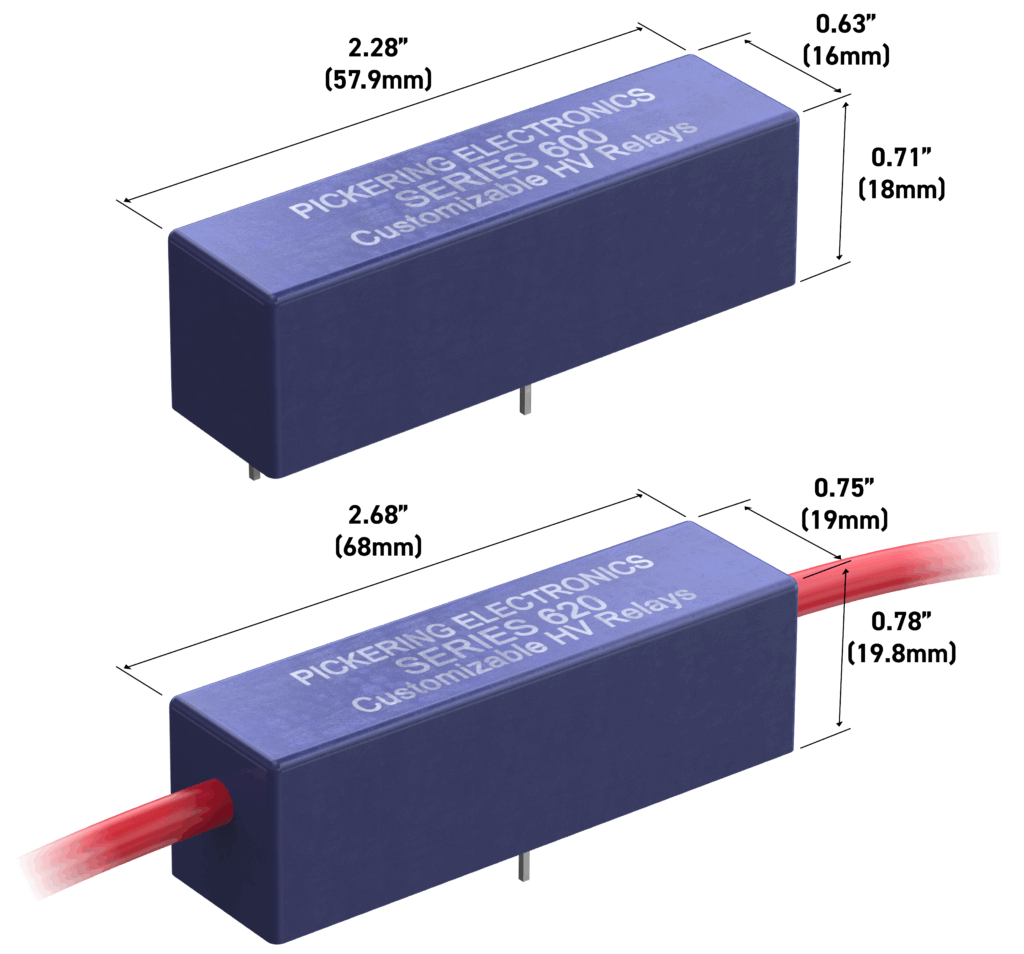

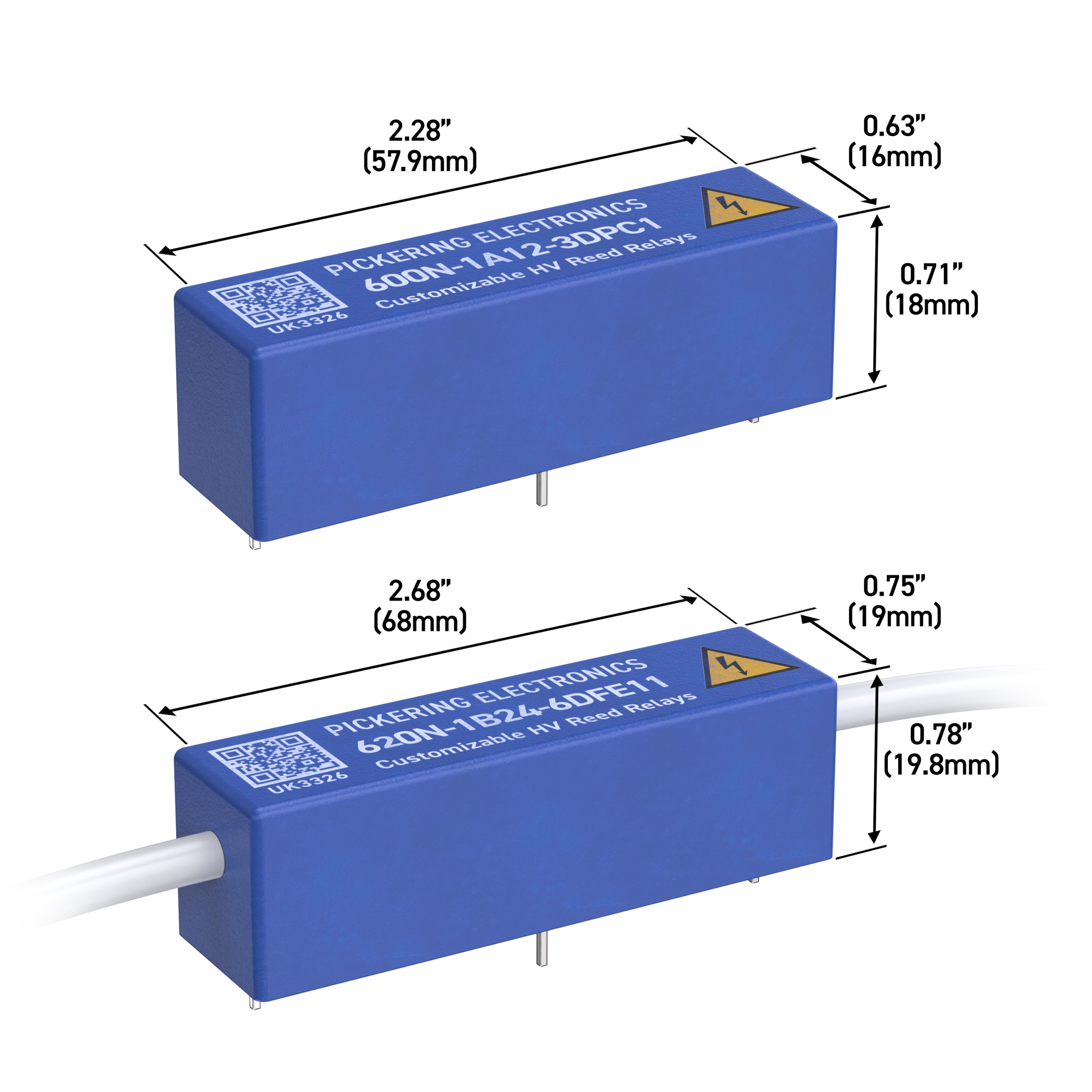

• Modular construction enables tailored case sizes, connection types (turrets, flying leads, PCB pins), and potting materials
• Switching up to 200W — suitable for discharge circuits, HV testing, EV and PV systems
• 100% tested for dynamic contact resistance to guarantee performance under real-world conditions
• Designed and manufactured in the UK with extensive custom engineering support
• Perfect for hi-pot testing, cable testing, EV charging systems, and other high voltage instrumentation needs

View Data Sheet PDF

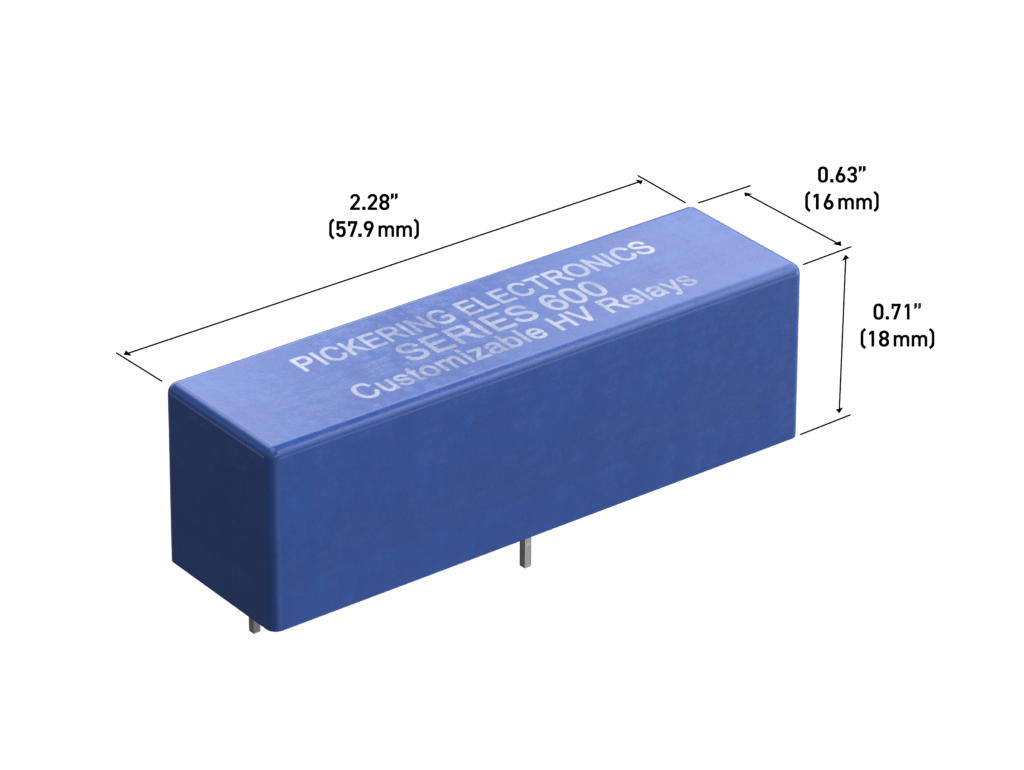

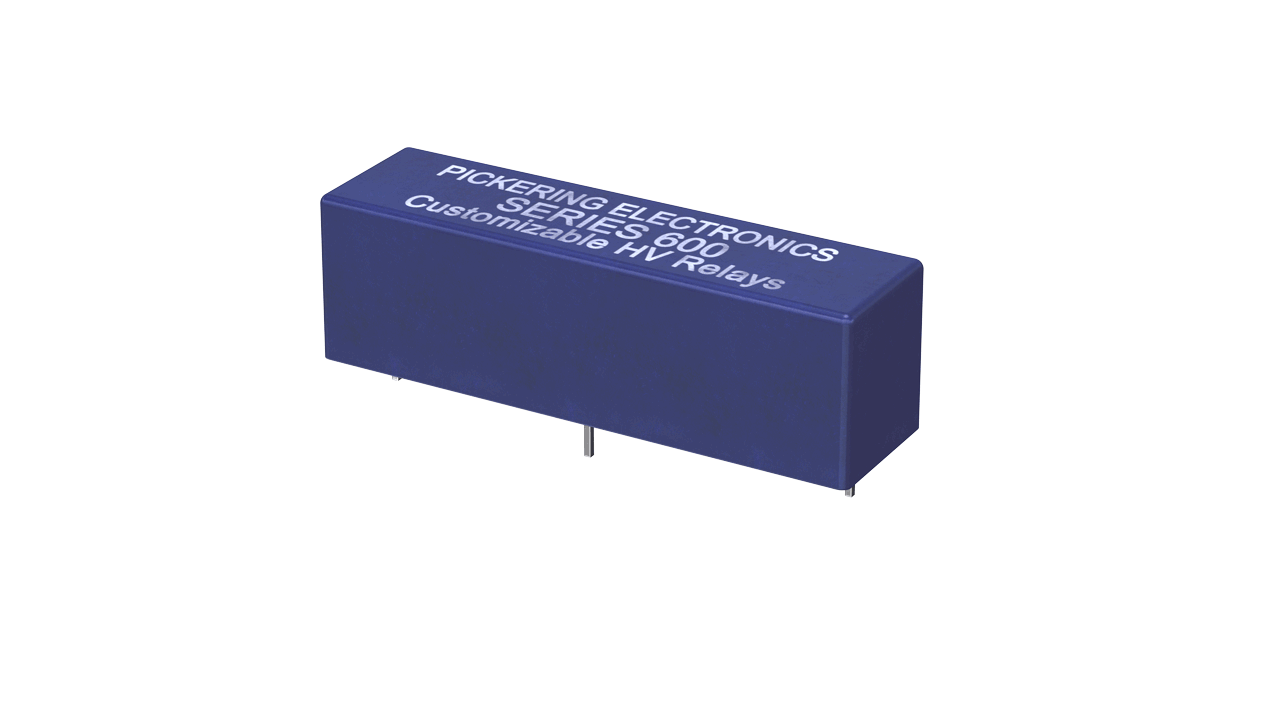

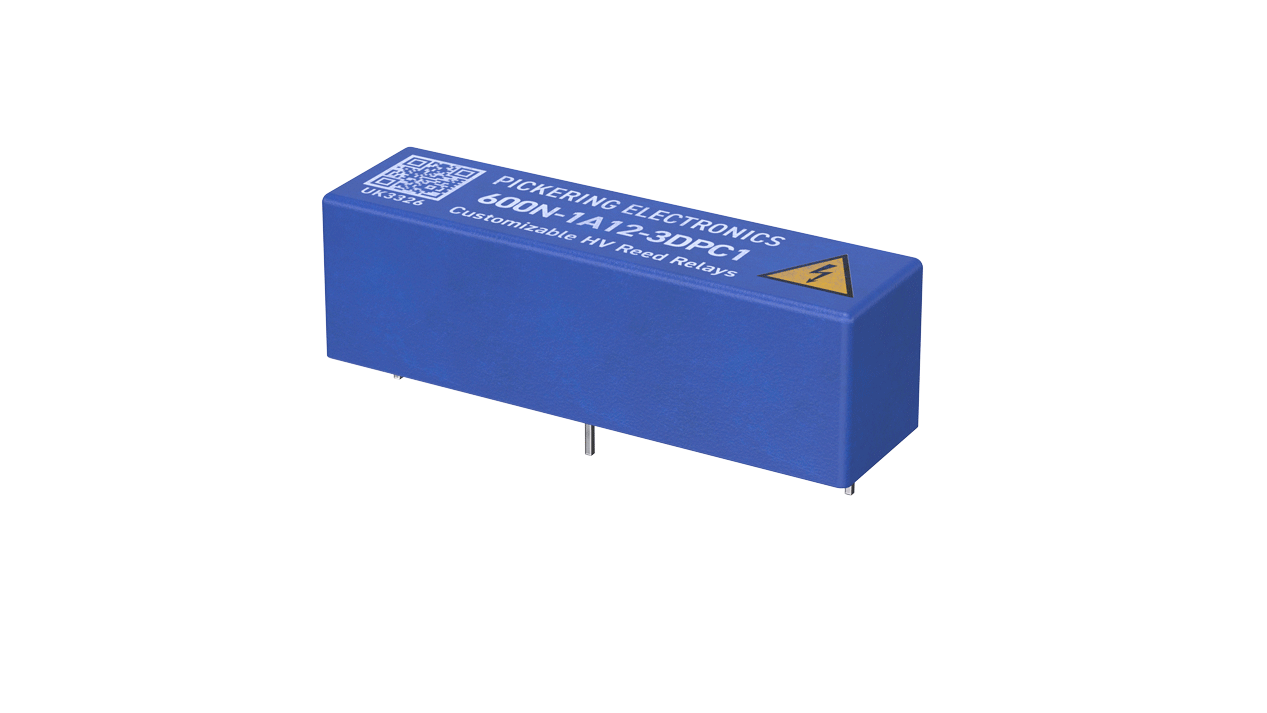

The Series 600 high voltage reed relay range is built for flexibility, with a modular construction that allows customization of key elements such as switching voltage, contact configuration, mounting style, and encapsulation. Designed to meet the increasing demand for ultra-reliable, bespoke, high voltage switching, this range offers up to 12.5kV switching and 20kV standoff, with 25kV standoff switch-to-coil — the highest specifications available in the industry.

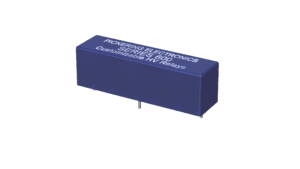

Series 600 relays are available in 1 Form A, 1 Form B, and 1 Form C configurations, with 5V, 12V, or 24V coils and optional internal diode or diode + Zener protection for coil back EMF clamping. Despite their capability, they are still compact enough for board- or chassis-mounted applications where space efficiency is essential.

Pickering’s formerless coil technology and SoftCenter™ construction provide excellent shock resistance and long operational life, while internal mu-metal magnetic screening minimizes interaction when multiple relays are used in close proximity. An optional electrostatic shield is available for added signal isolation.

All relays are 100% tested, including insulation resistance up to 10¹³Ω, and dynamic contact resistance, ensuring consistent, instrumentation-grade performance.

Ideal for use in hipot testing, high voltage instrumentation, EV and renewable energy systems, and ATE switching, the Series 600 bridges the gap between standard high voltage relays and fully custom designs — with all the flexibility and performance engineers need.
