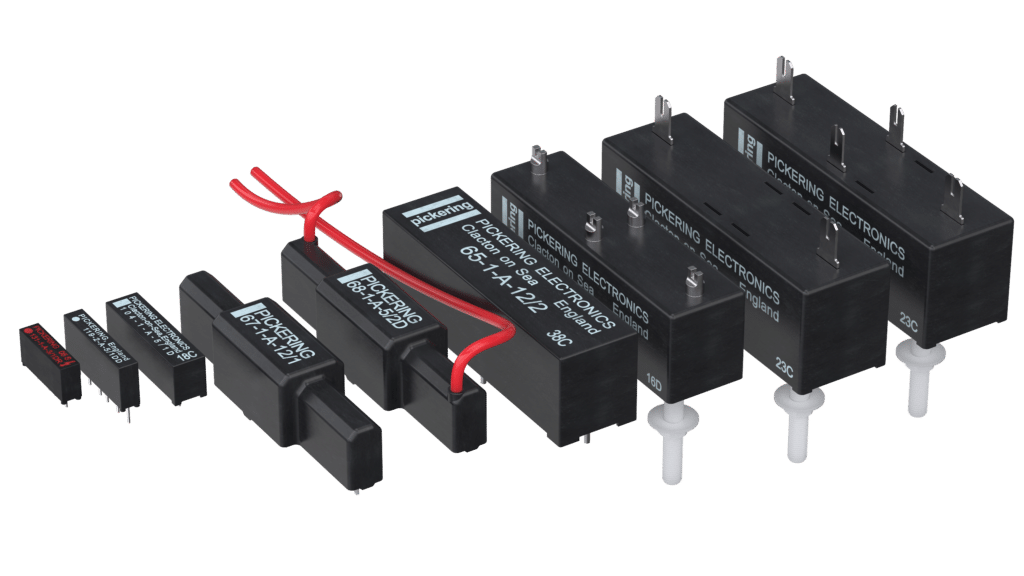

HIGH VOLTAGE RELAYS
Please see Pickering’s full range of high-performance reed relays for high voltage applications below.
These small relays can stand off from 1.5kV to 15kV and switch 500V to 12.5kV at up to 200W.
1 Form A, 2 Form A, 1 Form B and 1 Form C configurations available.
Available with PCB pins, chassis, PCB mounting, & flying leads for HV connections.
High voltage isolation relays for many applications include mixed-signal semiconductor testers, high-end cable testers, backplane testers, medical electronics, electric vehicles, solar energy, excellent physics, in-circuit test equipment, and high voltage instrumentation.

Pickering Series 60 & 65
High Voltage Dry Reed Relays
For up to 15kV
- SoftCenter™ construction
- Up to 15 kV stand-off
- 12.5 kV switching
- Small size
- Easy mounting
- Long life
- Fully encapsulated
- Many benefits compared to industry standard relays. Learn more here >.
Series 60 Chassis mounting with solder connections on the top face.
Series 65 Printed circuit mounting.
The Series 60 and 65 ranges of high-voltage reed relays have been manufactured for many years and remain popular due to their small size and ease of use.
They are available for up to 15kV stand-off, 12.5kV switching at 50 Watts maximum. Tungsten plated contacts ensure a long and reliable life.
Both Form A (energise to make) and Form B (energise to break) configurations are available, and it is usually possible to achieve a Form C (change-over) function by using a Form A and a Form B type together.
Form B types are magnetically biased and should not be mounted directly onto ferrous metal chassis, or less than 1.5 inches (38mm) away from other relays as the coil operating voltage characteristics will be altered due to magnetic interaction. The coils of Form B relays are polarity sensitive; a red spot identifies the positive connection.
Form A types can be mounted on ferrous chassis, but 1 inch (25mm) should be allowed between adjacent relays. 5, 12, and 24 volt coils are available as standard. Other voltages are open to a particular order. Please get in touch with our sales office.
If similar relays with “push-on” connectors are preferred, please look at our Series 62 and Series 63.
Pickering Series 62 & 63
High Voltage Dry Reed Relays
For up to 15 kV
- SoftCenter™ construction
- Up to 15 kV stand-off
- 12.5 kV switching
- Small size
- Easy mounting
- Long life
- Fully encapsulated
- Many benefits compared to industry standard relays. Learn more here >.
Series 62 Chassis mounting with push-on connections on the top face.
Series 63 Printed circuit mounting with push-on high voltage connections on the top face
The Series 62 and 63 ranges of high voltage reed relays feature push-on terminals and are supplied complete with the appropriate connectors and insulating boots.
They are available for up to 15kV stand-off, 12.5kV switching at 50 Watts maximum. Tungsten plated contacts ensure a long and reliable life.
Both Form A (energise to make) and Form B (energise to break) configurations are available and it is usually possible to achieve a Form C (change-over) function by using a Form A and a Form B type together.
These relays feature an internal mu-metal magnetic screen which permits the Form A (energise to make) versions to be mounted side by side. Special arrangements can be manufactured with an electrostatic screen and earth connection to the magnetic screen. This can often be useful where EMC problems are encountered. Please get in touch with our technical sales office.
Form B types are magnetically biased and should not be mounted directly onto ferrous metal chassis or less than 1 inch (25mm) away from other relays as the coil operating voltage characteristics will be altered due to magnetic interaction. The coils of Form B relays are polarity sensitive. A red spot identifies the positive connection.
5, 12, and 24 volt coils are available as standard other voltages can be supplied to special order.
Pickering Series 67 & 68 – up to 10 kV
High Voltage Dry Reed Relays
For up to 10kV
- Option of flying leads for high voltage connections
- 1 Form A SPST up to 10kV stand-off, 7.5kV switching at 50W (max)
- 1 Form A SPST up to 8kV stand-off, 6kV switching at 200W (max)
- 1 Form C up to 5kV stand-off, 2.5kV switching at 100W (max)
- SoftCenter™ construction
- Many benefits compared to industry standard relays. Learn more here >.
- Small size
- Easy mounting with pins on Single-in-Line format
- Robust tungsten plated contacts
- Fully encapsulated
- Internal mu-metal magnetic screen
- Option of internal diode across the coil connections
Series 67 PCB mounting with switch and coil connections in a Single-in-Line format.
Series 68 PCB contains connections on the underside for coil connections. Flying leads from the top face for high voltage connections.
Series 67 and 68 contain former-less coils. The absence of a coil supporting bobbin allows a device smaller than the industry norm. The unusual package design gives some exciting possibilities for high-density packing.
The option of flying leads for the high voltage connections makes it possible to keep this away from lower voltage circuitry on the PCB.
Form A (energise to make) and Form C SPDT (changeover) contacts are available with the option of 5, 12 and 24 volt operating coils.
Pickering series 100HV
High Voltage SIL/SIP Reed Relays
For up to 3 kilovolts
- Up to 3kV stand-off
- Stacking on 0.40 Inches pitch
- High coil resistance for low power consumption
- Thermal EMF levels less than 10 µV
- Internal mu-metal magnetic screen
- One or two switches in a single package
- 1 Form A, 2 Form A & 1 Form B configurations
- Two pole relay requires the same board area as the single pole type
- 5 V, 12 V or 24 V coils with optional internal diode
- Ideal for transformer or cable testing
- Many benefits compared to industry standard relays. Learn more here >.
The Pickering Series 100HV have the exact High Voltage specifications as the Pickering Series 104 but with over double the coil resistance. They are ideal for such applications as a transformer or cable testing or any other automatic test equipment where high voltages are involved, and low coil power consumption is required.
Where mains voltage is switched, for example, to control and isolate S.C.R. or Triac gates, they are an ideal choice. And in mixed-signal applications, the lower coil power reduces the Thermal EMF voltages generated across the switch. The range features an internal mu-metal screen to eliminate problems that would otherwise be experienced due to magnetic interaction when they are closely stacked.
Three dry switches are available, capable of standing-off 1.5, 2 or 3 kV d.c. The 3 kV version has an increased clearance between the switch and coil pins to accommodate the higher voltage. Even higher voltage ratings are available to a particular order, please content our sales office for further information.
Pickering series 104
High Voltage SIL Reed Relays
For up to 4 kilovolts
- SoftCenter™ construction
- Highest quality instrumentation grade switches
- Small size
- Internal mu-metal magnetic screen
- One or two switches in a single package
- Many benefits compared to industry standard relays. Learn more here >.
- Form A (energise to make) or Form B (energise to break) configurations
- Dry and mercury wetted switches available
- 5, 12 and 24 Volt coils are standard, with or without internal diode
- 100% tested for dynamic contact resistance
The Series 104 is a range of Single-In-Line reed relays intended for voltages that are beyond the capabilities of conventional SIL reed relays. They are ideal for such applications as a transformer or cable testing or other automatic test equipment involving high voltages. They are also suitable for electric vehicles, solar energy, medical equipment, mining and mass spectrometry.
Where mains voltages are switched, for example, to control and isolate S.C.R. or Triac gates, they are ideal.
One or two Form A (energise to make) or one Form B (energise to break) configurations are available.
The range features an internal mu-metal screen to eliminate problems that would otherwise be experienced due to magnetic interaction when they are closely stacked.
Four dry switches are available, capable of standing-off 1, 1.5, 3 or 4kV d.c. The 3kV version has an increased clearance between the switch and coil pins to accommodate the higher voltage. The 4kV’s more elevated stand-off can improve performance or increase the equipment specification.
Mercury wetted devices are also available for applications where bounce-free switching is required. These are rated at 1500 volts d.c. minimum stand-off, 500 volts d.c. switching at up to 50 watts.

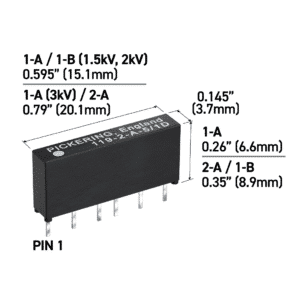

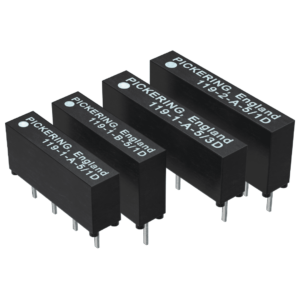

Pickering Series 119
High Voltage Micro-SIL Reed Relays
For up to 3 kilovolts
- SoftCenter™ construction
- Very small high voltage reed relay
- Highest quality Instrumentation Grade vacuum reed switches
- Internal mu-metal magnetic screen
- One or two switches in a single package
- Many benefits compared to industry standard relays. Learn more here >.
- 1 Form A (energise to make) up to 3kV
- 2 Form A (energise to make) up to 1kV
- 1 Form B (energise to break) up to 1kV or 2kV
- 3, 5 and 12 Volt coils are standard, with or without
internal diode - 100% tested for dynamic contact resistance

The Series 119 is a range of Micro-SIL Single-In-Line reed relays intended for voltages that are beyond the capabilities of conventional SIL reed relays. The 1 Form A, 1kV version is pin and package compatible with the established and popular Series 109P.
They are ideal for Cable testers, Mixed-signal ATE, or any other applications where high voltage capability is required, and space is at a premium.
Six versions are available, all with either 3, 5 or 12 volt operating coils. The 1 Form A, 1.5kV version has a package and pin configuration compatible with the standard 109P type, i.e. four pins on 0.15 inches (3.8mm) pitch. The other classes have package lengths and pin configurations appropriate for their voltage ratings, and the user will need to arrange suitable clearance distances around the parts.
Form A types can be mounted side by side. Still, a 1cm space should be left between the Form B type and other relays, as the magnetic field from the internal biasing magnet could slightly affect the sensitivity of the relay alongside.

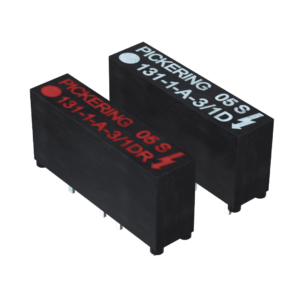

Pickering Series 131
High Voltage Mini-SIL / SIP Reed Relays
Minimum 1500V Stand-off
- SoftCenter™ construction
- Choice of 3, 5 or 12 Volt coils, with optional internal diode
- 1 Form A (energize to make) SPST N.O configuration
- Smallest high voltage relay currently available
- Switching up to 0.7 Amps, 10 Watts
- Ideal for cable testers, mixed signal/semiconductor testers, backplane testers, high voltage instrumentation, in-circuit test equipment or other applications where high voltage capability is required.
- Many benefits compared to industry standard relays. Learn more here >.
- Internal mu-metal magnetic screen allows side by side
stacking without magnetic interaction - 100% tested for dynamic contact resistance
- Unique SoftCenter™ construction (see diagram)
- Highest quality vacuumed, sputtered ruthenium reed
switches
The Pickering Series 131 is a new range of tiny Single-In-Line reed relays intended for voltages very much higher than standard small SIL relays. The vacuumed, sputtered ruthenium reed switches also have a superb low-level performance, which makes them an ideal choice where a wide range of signals is involved.
The range is based on the long-established Series 113 style of the plastic package with an internal mu-metal magnetic screen which allows high packing density and is made using Pickering’s SoftCentre™ construction.
Shop High Voltage Reed Relays
The below table will help you narrow down our offering to get you the correct reed relay for your application.
Once you narrow your selections down you can download a reed relay data sheet for more information or request a quote to find out prices and lead times.
Part Number | Contact Configuration | Switching Current (Amps) | Switching Power (Watts) | Switching Voltage (DC or AC peak) | Stand-off Voltage (DC or AC peak) | Coil Voltage | Coil Resistance (Ω) | Switch Type | Diode | Depth (mm) | Width (mm) | Height (mm) | View Datasheet | Stock | Price | Add to Bag | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 Form A - SPST N.O.
|
0.7 Amps
|
10 |
1000
|
1500
|
12V
|
750 Ω
|
1.5KV Standoff |
No
|
3.7 |
12.5 |
6.6 |
0 - MTO |
$13.65
|
||||
1 Form A - SPST N.O.
|
0.7 Amps
|
10 |
1000
|
1000
|
12V
|
750 Ω
|
1KV Standoff |
No
|
3.7 |
12.5 |
6.6 |
0 - MTO |
$13.79
|
||||
1 Form A - SPST N.O.
|
0.7 Amps
|
10 |
1000
|
1500
|
3V
|
100 Ω
|
1.5KV Standoff |
Yes
|
3.7 |
12.5 |
6.6 |
11 |
$12.85
|
Max: 11
Min: 1
Step: 1
Add |
|||
1 Form A - SPST N.O.
|
0.7 Amps
|
10 |
1000
|
1000
|
3V
|
100 Ω
|
1KV Standoff |
Yes
|
3.7 |
12.5 |
6.6 |
0 - MTO |
$14.37
|
||||
1 Form A - SPST N.O.
|
0.7 Amps
|
10 |
1000
|
1000
|
12V
|
750 Ω
|
1KV Standoff |
No
|
3.7 |
12.5 |
6.6 |
0 - MTO |
$14.47
|
||||
1 Form A - SPST N.O.
|
0.7 Amps
|
10 |
1000
|
1500
|
3V
|
100 Ω
|
1.5KV Standoff |
No
|
3.7 |
12.5 |
6.6 |
0 - MTO |
$12.48
|
||||
1 Form A - SPST N.O.
|
0.7 Amps
|
10 |
1000
|
1000
|
3V
|
100 Ω
|
1KV Standoff |
Yes
|
3.7 |
12.5 |
6.6 |
0 - MTO |
$13.67
|
