HIGH VOLTAGE 10KV REED RELAY

High Voltage Dry Reed Relays For up to 10kV

• Option of flying leads for high voltage connections
• Optional electrostatic screen
• 1 form A SPST up to 10kV stand-off, 7.5kV switching at 50W (max)
• 1 form A SPST up to 8kV stand-off, 6kV switching at 200W (max)
• 1 form A SPST up to 5kV stand-off, 2.5kV switching at 100W (max)
• 5, 12 or 24V coils with the option of an internal diode across the coil connections
• SoftCenter™ construction
• Easy mounting with pins on Single-in-Line format
• Robust tungsten plated contacts
• Many benefits compared to industry standard relays. Click here to learn more.

Download Data Sheet PDF

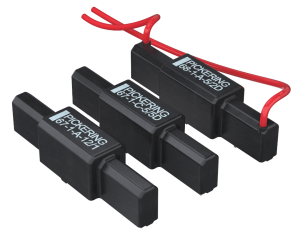

Series 67 PCB mounting with switch and coil connections in a Single-in-Line format.

Series 68 PCB connections on the underside for coil connections. Flying leads from the top face for high voltage connections.

Series 67 and 68 are constructed using former-less coils. The absence of a coil supporting bobbin allows a device smaller than the industry norm. The unusual package design gives some exciting possibilities for high-density packing.

The option of flying leads for the high voltage connections makes it possible to keep this away from lower voltage circuitry on the PCB. Form A (energise to make) and Form C SPDT (changeover) contacts are available with the option of 5, 12 and 24 volt operating coils.

Standing off up to 10kV, with form A SPST and form C SPDT configurations, along with a 200W switching option.

Series 67 & 68 reed relays are suitable for many applications including mining/gas analysis, big physics, high-end cable testers, backplane testers and high voltage instrumentation.
